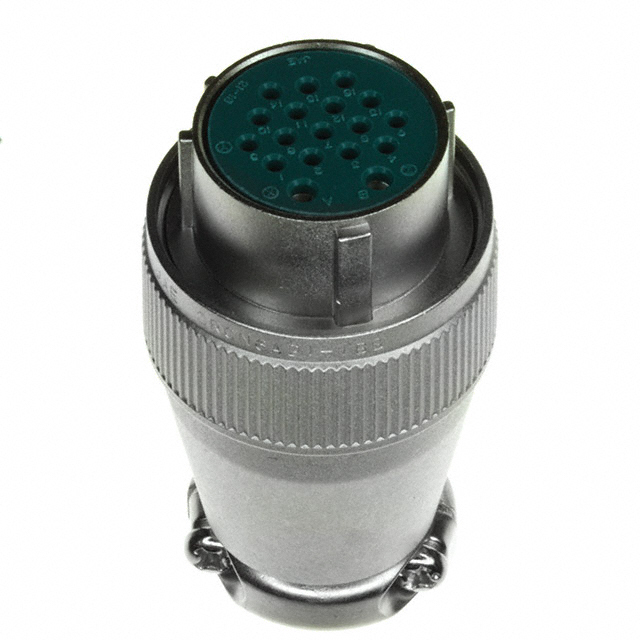

SRCN6A21-18S

Active

JAE Electronics

CONN PLUG FMALE 18P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Circular Connectors

SRCN6A21-18S

Active

JAE Electronics

CONN PLUG FMALE 18P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet Circular Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN6A21-18S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	14 mm
Cable Opening [custom]	0.551 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5A, 10A
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21-18
Voltage Rating	350 V, 250 VAC

SRCN6A21 Series

Part	Cable Opening [custom]	Cable Opening [custom]	Features	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Voltage Rating	Connector Type	Shell Material	Material Flammability Rating	Primary Material	Mounting Type	Applications	Insert Material	Shell Finish	Shell Size - Insert	Orientation	Backshell Material, Plating	Contact Finish - Mating	Number of Positions	Current Rating (Amps)
JAE Electronics SRCN6A21-10P	14 mm	0.551 in	Backshell Cable Clamp Coupling Nut	Copper Alloy	Silver	-25 °C	85 °C	10	10 A	250 VAC 350 V	Male Pins Plug	Aluminum Alloy	UL94 V-0	Metal	Free Hanging (In-Line)	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	Nickel	21-10	N	Aluminum Alloy Nickel	Silver
JAE Electronics SRCN6A21-16S	14 mm	0.551 in	Backshell Cable Clamp Coupling Nut	Copper Alloy	Silver	-25 °C	85 °C		5 A	250 VAC 350 V	Female Sockets Plug	Aluminum Alloy	UL94 V-0	Metal	Free Hanging (In-Line)	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	Nickel	21-16	N	Aluminum Alloy Nickel	Silver	16
JAE Electronics SRCN6A21-16P	14 mm	0.551 in	Backshell Cable Clamp Coupling Nut	Copper Alloy	Silver	-25 °C	85 °C		5 A	250 VAC 350 V	Male Pins Plug	Aluminum Alloy	UL94 V-0	Metal	Free Hanging (In-Line)	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	Nickel	21-16	N	Aluminum Alloy Nickel	Silver	16
JAE Electronics SRCN6A21-18S	14 mm	0.551 in	Backshell Cable Clamp Coupling Nut	Copper Alloy	Silver	-25 °C	85 °C	18		250 VAC 350 V	Female Sockets Plug	Aluminum Alloy	UL94 V-0	Metal	Free Hanging (In-Line)	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	Nickel	21-18	N	Aluminum Alloy Nickel	Silver		10A 5A
JAE Electronics SRCN6A21-18P	14 mm	0.551 in	Backshell Cable Clamp Coupling Nut	Copper Alloy	Silver	-25 °C	85 °C	18		250 VAC 350 V	Male Pins Plug	Aluminum Alloy	UL94 V-0	Metal	Free Hanging (In-Line)	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	Nickel	21-18	N	Aluminum Alloy Nickel	Silver		10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRCN6A21 Series

18 Position Circular Connector Plug, Female Sockets Solder Cup
