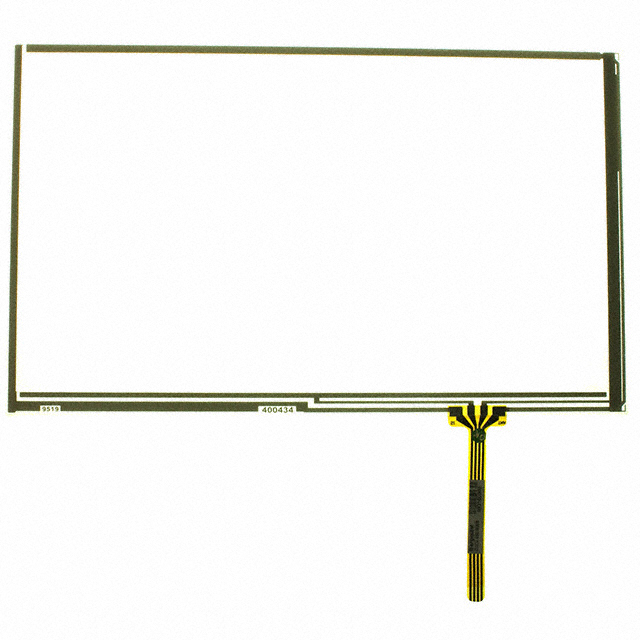

400434

Obsolete

Bergquist - Henkel

TOUCH SCREEN RESISTIVE 7.02"

Search across all available documentation for this part.

Obsolete

Bergquist - Henkel

TOUCH SCREEN RESISTIVE 7.02"

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Interface	Height [z]	Height [z]	Type	Width [x]	Width [x]	Diagonal Screen Size	Diagonal Screen Size	Length [x]	Length [x]	Width [y]	Width [y]	Width
Bergquist - Henkel 400437	98.1 mm	3.86 "	4-Wire	2.24 in	56.9 mm	Resistive	0.76 mm	0.03 in	4.36 in	110.68 mm
Bergquist - Henkel 400426			4-Wire	3.7 in	93.85 mm	Resistive	1.4 mm	0.06 in	5.72 in	145.36 mm	4.8 in	122 mm
Bergquist - Henkel 400430	0.25 m	9.84 "		7.4 "	188 mm	Resistive			12.1 in	307.34 mm			2.1 mm	0.08 in
Bergquist - Henkel 400494			5-Wire	6.54 "	166.2 mm	Resistive	2.2 mm	0.08 "	12.1 in	307.34 mm
Bergquist - Henkel 400434			4-Wire	3.54 in	90 mm	Resistive			7.02 in	178.31 mm	6.18 "	157 mm	1.02 mm	0.04 in
Bergquist - Henkel 400427			4-Wire	3.98 in	101 mm	Resistive					5.24 "	133 mm	1.02 mm	0.04 in
Bergquist - Henkel 400445				9.45 in	240 mm	Capacitive			15.1 in	382.8 mm	12.36 "	314 mm
Bergquist - Henkel 400403			5-Wire	7.54 in	191.4 mm	Resistive		0.07 in	12.1 in	307.34 mm	9.96 in	252.87 mm			1.85 mm
Bergquist - Henkel 400432				9.14 in	232.1 mm	Resistive		0.12 in	15 "	380 mm	12.13 in	308.2 mm			3.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Touch Screen Overlay 7.02" (178.31mm) 4-Wire
