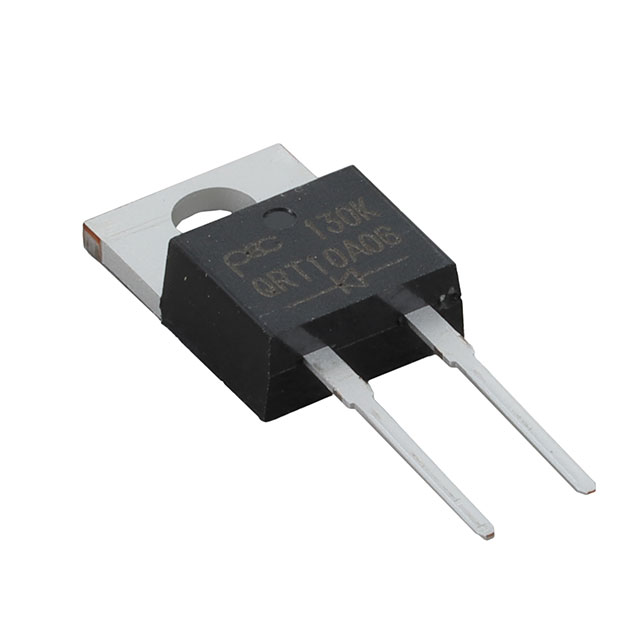

QRT10A06_T0_00001

Obsolete

Panjit International Inc.

DIODE GEN PURP 600V 10A TO220AC

Search across all available documentation for this part.

Obsolete

Panjit International Inc.

DIODE GEN PURP 600V 10A TO220AC

Technical Specifications

Parameters and characteristics for this part

Specification	QRT10A06_T0_00001

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	32 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.4 V

Part	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Technology	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io)
Panjit International Inc. QRT10A06_T0_00001	200 mA 500 ns	175 ░C	-55 C	Through Hole	Standard	32 ns	1 µA	TO-220AC	2.4 V	600 V	TO-220-2	10 A
Panjit International Inc. QRT10A06F_T0_00001	200 mA 500 ns	175 ░C	-55 C	Through Hole	Standard	32 ns	1 µA	ITO-220AC	2.4 V	600 V	TO-220-2 Full Pack Isolated Tab	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 10A Through Hole TO-220AC

Technical documentation and resources

No documents available
