EDZ950/6

Active

On Shore Technology Inc.

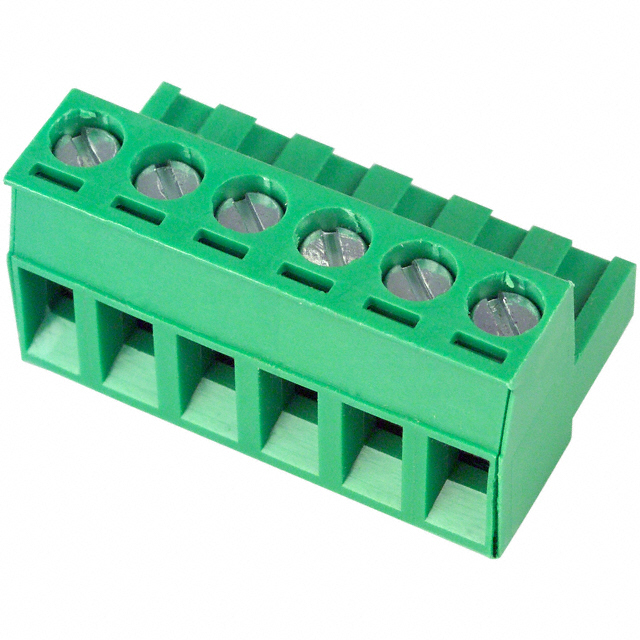

TERM BLOCK PLUG 6POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

EDZ950/6

Active

On Shore Technology Inc.

TERM BLOCK PLUG 6POS STR 5.08MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ950/6

Color	Green
Contact Material	Copper
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	6 mm

EDZ950 Series

Part	Voltage - UL	Number of Levels	Material Flammability Rating	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Strip Length	Mounting Type	Termination Style	Wire Gauge or Range - mm˛	Housing Material	Contact Material	Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Positions Per Level	Color	Number of Positions	Wire Gauge or Range - mm²
On Shore Technology Inc. EDZ950/16	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets	16	-30 ░C	105 ░C	0.2 in	5.08 mm	16	Green
On Shore Technology Inc. EDZ950/7	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	7	Green	7
On Shore Technology Inc. EDZ950/2M113	300 V	1				12 AWG	22 AWG		Free Hanging (In-Line)	Screw				Plug Female Sockets				0.2 in	5.08 mm	2		2	2.5 mm²
On Shore Technology Inc. EDZ950/4M114	300 V	1				12 AWG	22 AWG		Free Hanging (In-Line)	Screw	2.5 mm˛			Plug Female Sockets				0.2 in	5.08 mm	4		4
On Shore Technology Inc. EDZ950/20	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	20	Green	20
On Shore Technology Inc. EDZ950/6	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	6	Green	6
On Shore Technology Inc. EDZ950/18	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw		Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	18	Green	18	2.5 mm²
On Shore Technology Inc. EDZ950/24	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm		Green	24
On Shore Technology Inc. EDZ950/9	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	9	Green	9
On Shore Technology Inc. EDZ950/14	300 V	1	UL94 V-0	4.4 Lb-In	0.5 Nm	12 AWG	22 AWG	6 mm	Free Hanging (In-Line)	Screw	2.5 mm˛	Polyamide (PA) Nylon	Copper	Plug Female Sockets		-30 ░C	105 ░C	0.2 in	5.08 mm	14	Green	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.02
		10	$ 2.71
		25	$ 2.45
		50	$ 2.31
		100	$ 2.21
		250	$ 2.11
		500	$ 2.05
		1000	$ 2.01
		5000	$ 1.95

Description

General part information

EDZ950 Series

6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line)
