BA8391G-TR

Active

Rohm Semiconductor

IC COMPARATOR 1 GEN PUR 5SSOP

Search across all available documentation for this part.

Active

Rohm Semiconductor

IC COMPARATOR 1 GEN PUR 5SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	BA8391G-TR

Current - Input Bias (Max) [Max]	0.25 µA
Current - Output (Typ)	16 mA
Current - Quiescent (Max) [Max]	700 µA
Mounting Type	Surface Mount
Number of Elements	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open-Collector

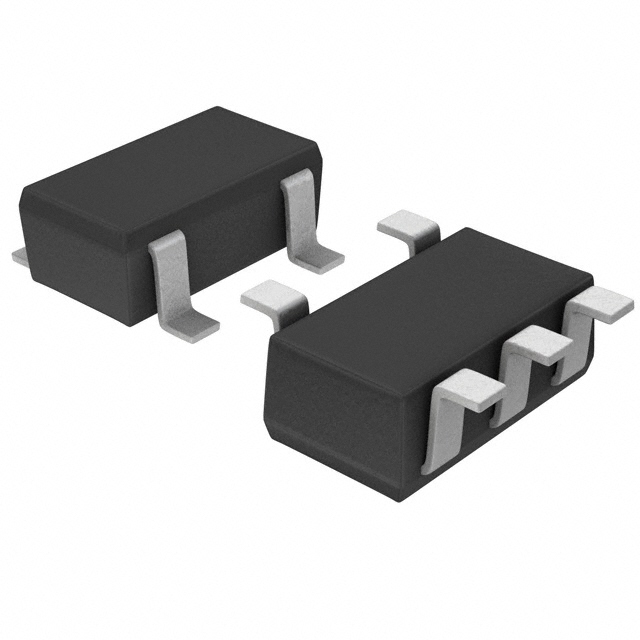

Package / Case	SC-74A, SOT-753
Supplier Device Package	5-SSOP
Type	General Purpose
Voltage - Input Offset (Max) [Max]	7 mV
Voltage - Supply, Single/Dual (±) [Max]	36 V, 18 V
Voltage - Supply, Single/Dual (±) [Min]	2 V, 1 V

Part	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias (Max) [Max]	Number of Elements	Current - Quiescent (Max) [Max]	Package / Case	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplier Device Package	Voltage - Input Offset (Max) [Max]	Output Type	Current - Output (Typ)
Rohm Semiconductor BA8391G-TR	General Purpose	Surface Mount	85 °C	-40 °C	0.25 µA	1	700 µA	SC-74A SOT-753	1 V 2 V	18 V 36 V	5-SSOP	7 mV	Open-Collector	16 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Collector 5-SSOP
