VCR50X560KGS

Active

KEMET

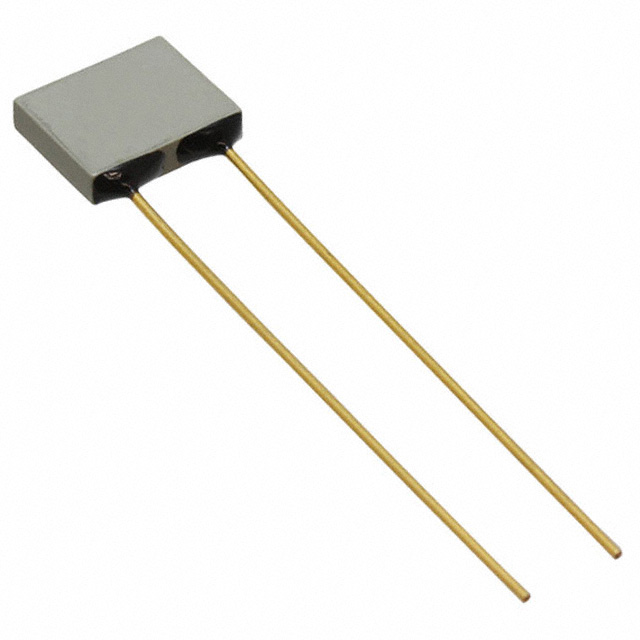

CAP CER 56PF 5KV NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 56PF 5KV NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	VCR50X560KGS

Applications	General Purpose
Capacitance	56 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lead Spacing	10.16 mm
Lead Spacing	0.4 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.52 in
Size / Dimension [x]	13.21 mm
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	5 kV
Voltage - Rated	5 kV

Part	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Features	Package / Case	Lead Style	Voltage - Rated	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Capacitance
KEMET VCR50X560KGS	10.16 mm	0.4 in	10 %	0.52 in	7.62 mm	13.21 mm	0.3 "	C0G NP0	High Temperature High Voltage	Radial	Straight	5 kV	5 kV	-55 °C	200 °C	Through Hole	12.7 mm	0.5 in	General Purpose	56 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56 pF ±10% 5000V (5kV) Ceramic Capacitor C0G, NP0 Radial
