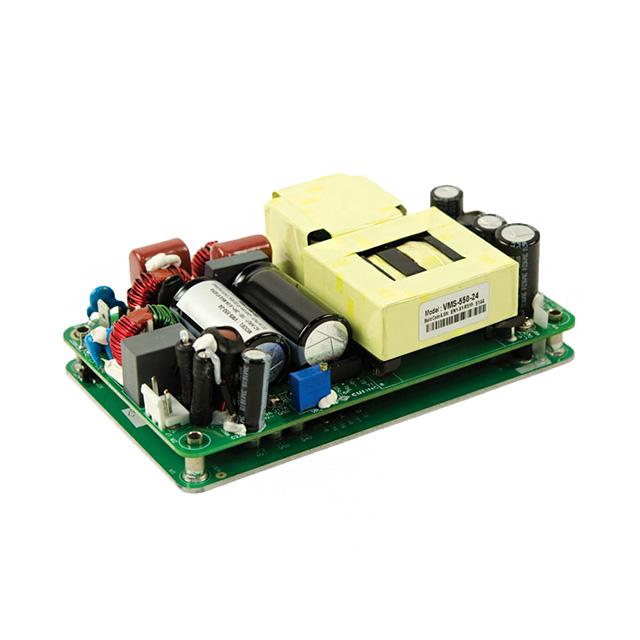

VMS-550-30

Active

CUI Inc.

AC/DC CONVERTER 30V 150W

Deep-Dive with AI

Search across all available documentation for this part.

VMS-550-30

Active

CUI Inc.

AC/DC CONVERTER 30V 150W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-550-30

Applications	Medical
Approval Agency	TUV, CB Scheme, UL, FCC, IEC, EN
Current - Output 1	5 A
Efficiency	91 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	550 W
Power (Watts)	150 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	61000-3-2, 61000-3-3, 55011 Class B, 60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.2 kV
Voltage - Output 1	30 V

VMS-550 Series

Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Standard Number	Current - Output 1	Applications	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Number of Outputs	Power (Watts)	Power (Watts)	Efficiency	Voltage - Isolation	Voltage - Output 1
CUI Inc. VMS-550-30	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC	CB Scheme EN FCC IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	5 A	Medical	Open Frame	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	1	550 W	150 W	91 %	4.2 kV	30 V
CUI Inc. VMS-550-15	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC	CB Scheme EN FCC IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	8 A	Medical	Open Frame	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	1	500 W	120 W	90 %	4.2 kV	15 V
CUI Inc. VMS-550-12	Adjustable Output Standby Output Universal Input	90 VAC	264 VAC	CB Scheme EN FCC IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	10 A	Medical	Open Frame	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	1	500 W	120 W	90 %	4.2 kV	12 V
CUI Inc. VMS-550-48	Adjustable Output Standby Output Universal Input	90 VAC	264 VAC	CB Scheme EN FCC IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	3.13 A	Medical	Open Frame	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	1	550 W	150 W	92 %	4.2 kV	48 V
CUI Inc. VMS-550-58	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC	CB Scheme EN FCC IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	2.59 A	Medical	Open Frame	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	1	550 W	150 W	92 %	4.2 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	84	$ 237.06

Description

General part information

VMS-550 Series

Open Frame AC DC Converters 1 Output 30V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
