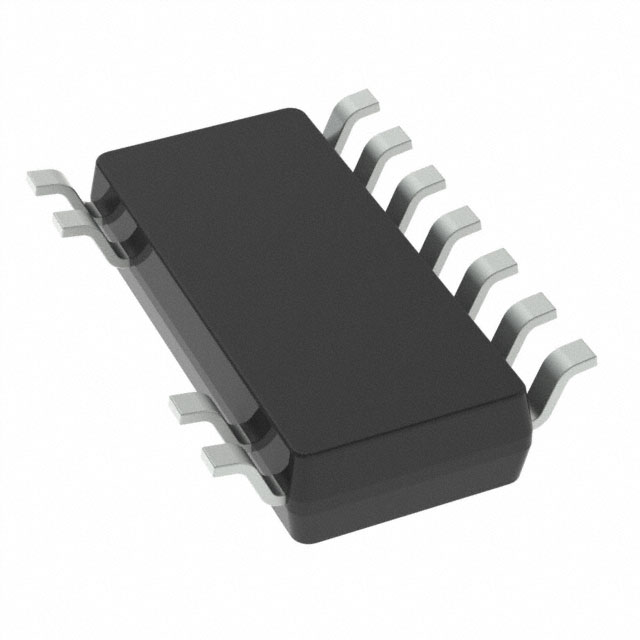

HF920GS-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

OFF-LINE FLYBACK REGULATOR SOIC T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF920GS-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

OFF-LINE FLYBACK REGULATOR SOIC T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HF920GS-Z

Control Features	Soft Start
Fault Protection	Over Temperature, Over Load, Over Voltage, Short Circuit
Frequency - Switching [Max]	150 kHz
Internal Switch(s)	False
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	11 Leads
Package / Case	0.154 in
Package / Case	14-SOIC
Package / Case	3.9 mm
Power (Watts)	10 W
Supplier Device Package	14-SOIC-11
Topology	Flyback
Voltage - Breakdown	900 V
Voltage - Supply (Vcc/Vdd) [Max]	24 V
Voltage - Supply (Vcc/Vdd) [Min]	10 V

HF920 Series

Part	Supplier Device Package	Frequency - Switching [Max]	Mounting Type	Voltage - Breakdown	Power (Watts)	Control Features	Package / Case	Package / Case	Package / Case	Package / Case	Topology	Output Isolation	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Duty Cycle	Voltage - Start Up	Package / Case [custom]	Package / Case [custom]	Supplied Contents	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Regulator Topology	Voltage - Output	Utilized IC / Part	Power - Output	Outputs and Type	Outputs and Type	Main Purpose
MONOLITHIC POWER SYSTEMS (MPS) HF920BGS-P	14-SOIC-11	150 kHz	Surface Mount	900 V	10 W	Frequency Control	11 Leads	0.154 in	14-SOIC	3.9 mm	Flyback	Isolated	24 V	10 V	Current Limiting Over Load Over Temperature Short Circuit	-40 °C	125 ¯C	83 %	4 V
MONOLITHIC POWER SYSTEMS (MPS) HF920GSE-Z		150 kHz	Surface Mount	900 V	10 W	Soft Start	0.154 in		8-SOIC		Flyback		24 V	10 V	Over Load Over Temperature Over Voltage Short Circuit	-40 °C	125 ¯C			7	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) HF920GSE		150 kHz	Surface Mount	900 V	10 W	Soft Start	0.154 in		8-SOIC		Flyback		24 V	10 V	Over Load Over Temperature Over Voltage Short Circuit	-40 °C	125 ¯C			7	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) EVHF920-S-00D																						Board(s)	50 mA 300 mA	85 VAC	350 VAC	Fully Populated	Flyback	8 V 13.5 V	HF920	4.85 W	Isolated	3	AC/DC Primary Side
MONOLITHIC POWER SYSTEMS (MPS) HF920BGS-Z	14-SOIC-11	150 kHz	Surface Mount	900 V	10 W	Frequency Control	11 Leads	0.154 in	14-SOIC	3.9 mm	Flyback	Isolated	24 V	10 V	Current Limiting Over Load Over Temperature Short Circuit	-40 °C	125 ¯C	83 %	4 V
MONOLITHIC POWER SYSTEMS (MPS) HF920GS-Z	14-SOIC-11	150 kHz	Surface Mount	900 V	10 W	Soft Start	11 Leads	0.154 in	14-SOIC	3.9 mm	Flyback		24 V	10 V	Over Load Over Temperature Over Voltage Short Circuit	-40 °C	125 ¯C
