XRP2527IHBTR-1-F

Obsolete

MaxLinear, Inc.

IC PWR SWITCH 1:1 8TDFN

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

IC PWR SWITCH 1:1 8TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	XRP2527IHBTR-1-F

Current - Output (Max) [Max]	1 A
Fault Protection	Current Limiting (Adjustable), Reverse Current, Over Temperature, UVLO
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side

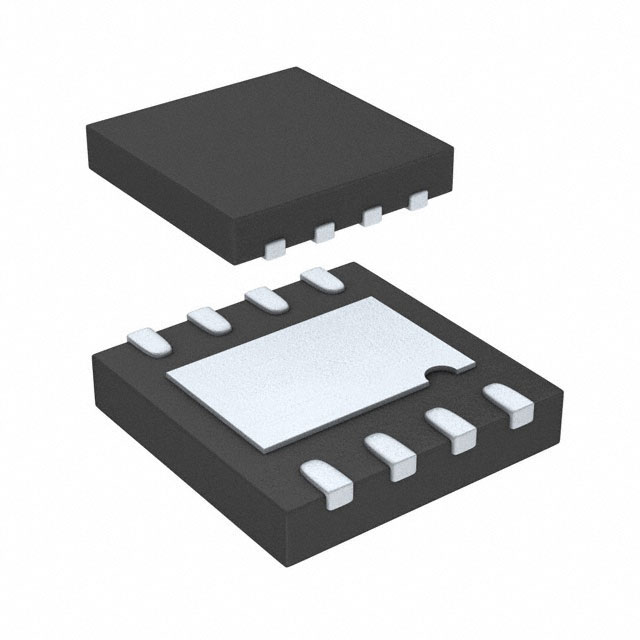

Package / Case	8-WDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	80 mOhm
Supplier Device Package	8-DFN (3x3)
Switch Type	USB Switch
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.8 V
Voltage - Supply (Vcc/Vdd)	False

Part	Supplier Device Package	Fault Protection	Number of Outputs	Package / Case	Ratio - Input:Output [custom]	Interface	Current - Output (Max) [Max]	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Mounting Type	Switch Type	Voltage - Supply (Vcc/Vdd)	Features
MaxLinear, Inc. XRP2527IHBTR-1-F	8-DFN (3x3)	Current Limiting (Adjustable) Over Temperature Reverse Current UVLO	1	8-WDFN Exposed Pad	1:1	On/Off	1 A	80 mOhm	1.8 V	5.5 V	Non-Inverting	-40 °C	125 ¯C	High Side	Surface Mount	USB Switch		Status Flag

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 1A 8-DFN (3x3)

Technical documentation and resources

No documents available
