2823405

Obsolete

Phoenix Contact

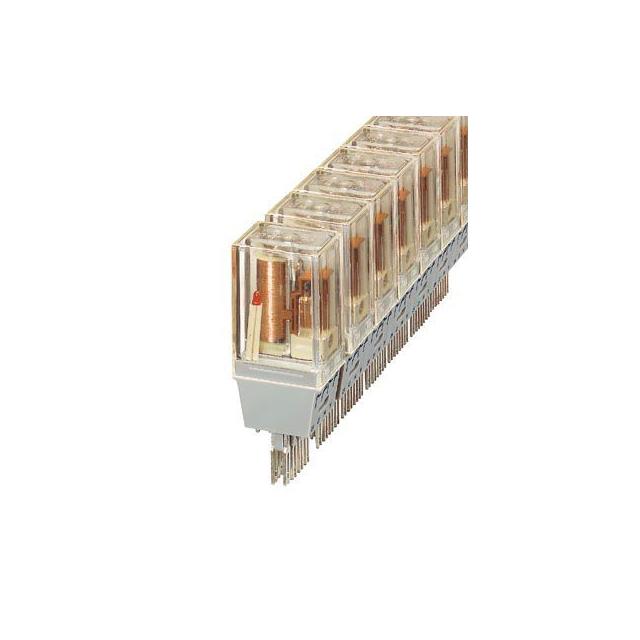

RELAY GEN PURPOSE DPDT 6A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Release Time	Switching Voltage	Coil Current	Mounting Type	Contact Rating (Current)	Operate Time	Contact Form	Coil Type	Features	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Relay Type
Phoenix Contact 2823405	Plug In	25 ms	250 VAC 250 VDC	21 mA	Socketable	6 A	15 ms	DPDT (2 Form C)	Non Latching	Diode Lighted Indicator	24 VDC	-20 C	60 °C	GOST	General Purpose
Phoenix Contact 2823434	Plug In	25 ms	250 VAC 250 VDC	6.5 mA	Socketable	6 A	15 ms	DPDT (2 Form C)	Non Latching	Diode Lighted Indicator	220 VDC	-20 C	60 °C	GOST	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources
