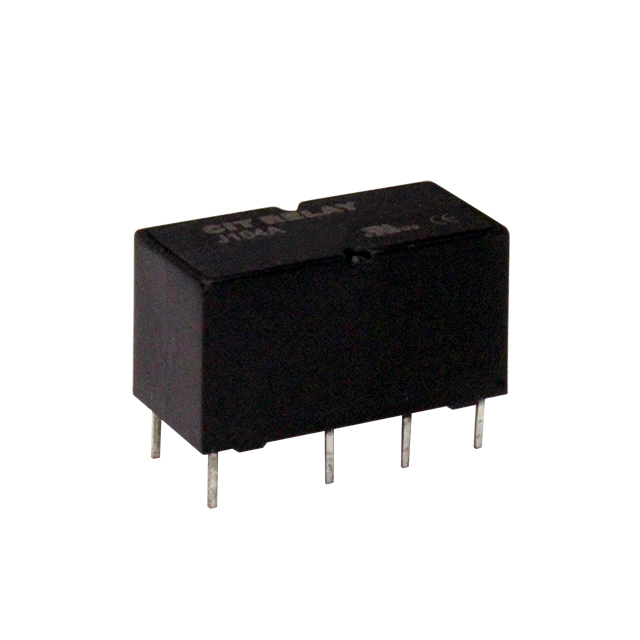

J104A2C12VDC.40S

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 3A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J104A2C12VDC.40S

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 3A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J104A2C12VDC.40S

Coil Current	33.3 mA
Coil Resistance	360 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	3 A
Load - Max Switching	660 W, 750 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	4.5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	1.5 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

J104A2C Series

Part	Switching Voltage	Contact Material	Termination Style	Mounting Type	Contact Form	Load - Max Switching	Coil Type	Release Time	Must Release Voltage	Coil Resistance	Seal Rating	Contact Rating (Current)	Must Operate Voltage	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Current	Operate Time
CIT Relay and Switch J104A2C9VDC.40S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	0.9 VDC	203 Ohms	Sealed - Fully	3 A	6.75 VDC	9 VDC	85 °C	-40 °C	General Purpose	44.3 mA	4.5 ms
CIT Relay and Switch J104A2C5VDC.40S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	0.5 VDC	63 Ohms	Sealed - Fully	3 A	3.75 VDC	5 VDC	85 °C	-40 °C	General Purpose	79.4 mA	4.5 ms
CIT Relay and Switch J104A2C24VDC.55S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	2.4 VDC	1.07 kOhms	Sealed - Fully	3 A	18 VDC	24 VDC	85 °C	-40 °C	General Purpose	22.4 mA	4.5 ms
CIT Relay and Switch J104A2C12VDC.40S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	1.2 VDC	360 Ohms	Sealed - Fully	3 A	9 VDC	12 VDC	85 °C	-40 °C	General Purpose	33.3 mA	4.5 ms
CIT Relay and Switch J104A2C48VDC.40S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	4.8 VDC	5.76 kOhms	Sealed - Fully	3 A	36 VDC	48 VDC	85 °C	-40 °C	General Purpose	8.3 mA	4.5 ms
CIT Relay and Switch J104A2C3VDC.40S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	0.3 VDC	23 Ohms	Sealed - Fully	3 A	2.25 VDC		85 °C	-40 °C	General Purpose	130.4 mA	4.5 ms
CIT Relay and Switch J104A2C5VDC.55S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	0.5 VDC	45 Ohms	Sealed - Fully	3 A	3.75 VDC	5 VDC	85 °C	-40 °C	General Purpose	111.1 mA	4.5 ms
CIT Relay and Switch J104A2C48VDC.55S	220 VDC 250 VAC	Gold (Au) Silver Nickel (AgNi)	PC Pin	Through Hole	DPDT (2 Form C)	660 W 750 VA	Non Latching	1.5 ms	4.8 VDC		Sealed - Fully	3 A	36 VDC	48 VDC	85 °C	-40 °C	General Purpose	12.3 mA	4.5 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.94
		20	$ 0.88
		40	$ 0.74
		100	$ 0.70
		260	$ 0.69

Description

General part information

J104A2C Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
