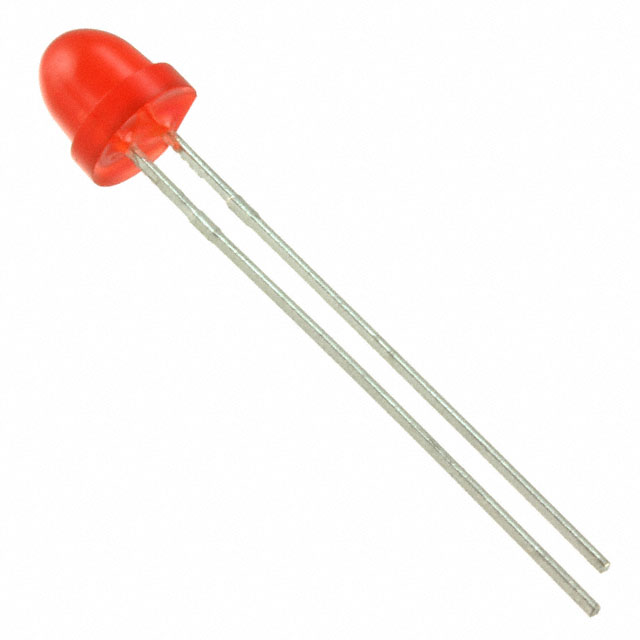

WP63ID

Active

Kingbright

LED RED DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Active

Kingbright

LED RED DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Configuration	Height (Max) [Max] [z]	Lens Size	Lens Size	Mounting Type	Wavelength - Dominant	Lens Style	Supplier Device Package	Lens Transparency	Viewing Angle	Size / Dimension [diameter]	Lens Color	Millicandela Rating	Current - Test
Kingbright WP63GD	Radial	Green	565 nm	2.2 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	568 nm	Round with Domed Top	T-1 3/4	Diffused	60 °	5 mm	Green	16 mcd	20 mA
Kingbright WP63SRT	Radial	Red	655 nm	1.85 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	640 nm	Round with Domed Top	T-1 3/4	Clear	30 °	5 mm	Red	250 mcd	20 mA
Kingbright WP63SRC	Radial	Red	655 nm	1.85 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	640 nm	Round with Domed Top	T-1 3/4	Clear	30 °	5 mm	Colorless	250 mcd	20 mA
Kingbright WP63ID	Radial	Red	627 nm	2 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	617 nm	Round with Domed Top	T-1 3/4	Diffused	60 °	5 mm	Red	12 mcd	20 mA
Kingbright WP63GT	Radial	Green	565 nm	2.2 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	568 nm	Round with Domed Top	T-1 3/4	Clear	30 °	5 mm	Green	80 mcd	20 mA
Kingbright WP63IT	Radial	Red	627 nm	2 V	Standard	6 mm	T-1 3/4	5 mm	Through Hole	617 nm	Round with Domed Top	T-1 3/4	Clear	30 °	5 mm	Red	30 mcd	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 617nm LED Indication - Discrete 2V Radial
