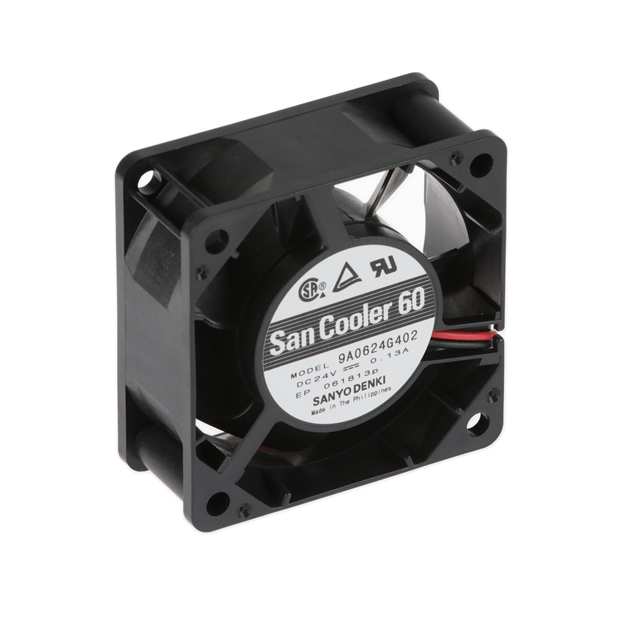

9A0624G402

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

9A0624G402

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9A0624G402

Air Flow	0.773 mł/min
Air Flow	27.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.12 W
RPM	5600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.351 in H2O
Static Pressure	87.3 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Weight	80 g
Weight	0.176 lb
Width [y]	25 mm

9A0624 Series

Part	Bearing Type	Termination	Weight	Weight	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Noise	Material - Blade	Width [y]	Voltage - Rated	Air Flow	Air Flow	RPM	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Fan Type	Features	Material - Frame	Power (Watts)	Air Flow
Sanyo Denki America Inc. 9A0624M4D01	Ball	3 Wire Leads	80 g	0.176 lb	40 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	28 dB	Plastic	25 mm	24 VDC	12.7 CFM	0.356 mł/min	2600 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	14 VDC	0.079 in H2O	19.6 Pa	Tubeaxial	Locked Rotor Sensor	Plastic
Sanyo Denki America Inc. 9A0624G4021	Ball	2 Wire Leads	80 g	0.176 lb		-20 °C	60 °C	-20 C	60 °C	CSA TUV UL	39 dB(A)	Plastic	25 mm	24 VDC	27.6 CFM	0.773 mł/min	5600 RPM		60 mm	60 mm	27.6 VDC	12 VDC	0.351 in H2O	87.3 Pa	Tubeaxial		Plastic	3.12 W
Sanyo Denki America Inc. 9A0624S401	Ball	3 Wire Leads	80 g	0.176 lb		-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	33 dB(A)	Plastic	25 mm	24 VDC	23 CFM	0.644 m³/min	4600 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	12 VDC	0.228 in H2O	56.8 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	Plastic	1.92 W
Sanyo Denki America Inc. 9A0624S4021	Ball	2 Wire Leads	80 g	0.176 lb		-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	33 dB(A)	Plastic	25 mm	24 VDC	23 CFM	0.644 m³/min	4600 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	12 VDC	0.228 in H2O	56.8 Pa	Tubeaxial		Plastic	1.92 W
Sanyo Denki America Inc. 9A0624H4D01	Ball	3 Wire Leads	80 g	0.176 lb	60 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	28 dB	Plastic	25 mm	24 VDC	18.7 CFM	0.524 mł/min	3800 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	12 VDC			Tubeaxial	Locked Rotor Sensor	Plastic	1.44 W
Sanyo Denki America Inc. 9A0624G402	Ball	2 Wire Leads	80 g	0.176 lb		-20 °C	60 °C	-20 C	60 °C	CSA TUV UL	39 dB(A)	Plastic	25 mm	24 VDC		0.773 mł/min	5600 RPM		60 mm	60 mm	27.6 VDC	12 VDC	0.351 in H2O	87.3 Pa	Tubeaxial		Plastic	3.12 W	27.6 CFM
Sanyo Denki America Inc. 9A0624M401	Ball	3 Wire Leads	80 g	0.176 lb	40 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	20 dB	Plastic	25 mm	24 VDC	12.7 CFM	0.356 mł/min	2600 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	14 VDC	0.079 in H2O	19.6 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	Plastic
Sanyo Denki America Inc. 9A0624M4011	Ball	3 Wire Leads	80 g	0.176 lb	40 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	20 dB	Plastic	25 mm	24 VDC	12.7 CFM	0.356 mł/min	2600 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	14 VDC	0.079 in H2O	19.6 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	Plastic
Sanyo Denki America Inc. 9A0624F4D011	Ball	3 Wire Leads	80 g	0.176 lb	50 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	24 dB	Plastic	25 mm	24 VDC	15.5 CFM	0.434 m³/min	3200 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	12 VDC	0.118 in H2O	29.4 Pa	Tubeaxial	Locked Rotor Sensor	Plastic	1.2 W
Sanyo Denki America Inc. 9A0624F401	Ball	3 Wire Leads	80 g	0.176 lb	50 mA	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	24 dB	Plastic	25 mm	24 VDC	15.5 CFM	0.434 m³/min	3200 RPM	40000 Hrs	60 mm	60 mm	27.6 VDC	12 VDC	0.118 in H2O	29.4 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	Plastic	1.2 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.87
		10	$ 11.42
		25	$ 10.48
		80	$ 9.46

Description

General part information

9A0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 27.6 CFM (0.773m³/min) 2 Wire Leads
