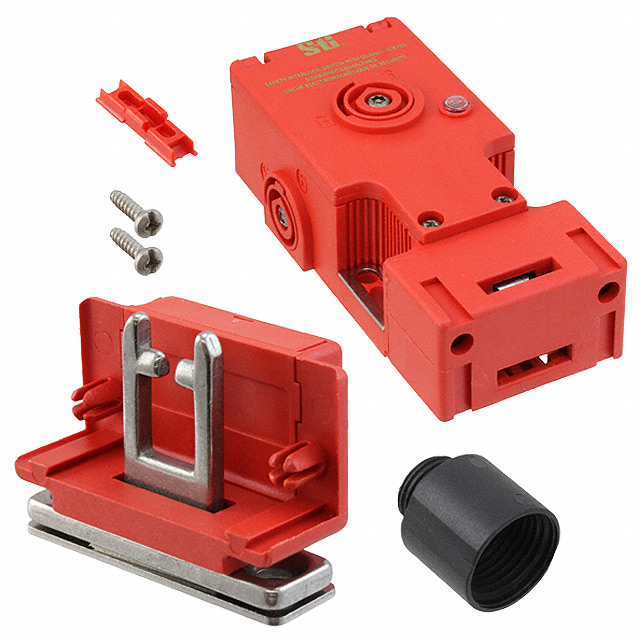

TL5012-1024SM
ActiveOmron Electronics Inc-EMC Div
INTERLOCK SOLENOID RELEASE 3PST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL5012-1024SM |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | cULus, CE |
| Circuit | 3PST-2NC/1NO |
| Current Rating (Amps) | 2 A, 5 A |
| Holding Force | 102 kgf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Screw Terminal |
| Type | Solenoid Release |
| Voltage - Supply | 24 VAC |
| Voltage Rating | 100 VAC, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 673.82 | |
| 5 | $ 663.76 | |||
| 10 | $ 623.53 | |||
Description
General part information
TL5012 Series
INTERLOCK SOLENOID RELEASE 3PST
