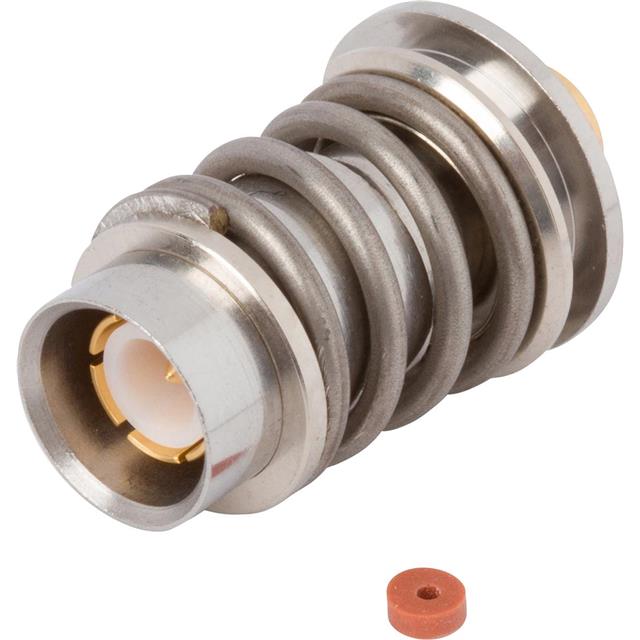

SF8806-6006

Active

Amphenol SV Microwave

BZ MALE CONNECTOR, SPRING LOADED, FOR .085 CABLE /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BZ MALE CONNECTOR, SPRING LOADED, FOR .085 CABLE /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF8806-6006

Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BZ
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Number of Ports	1
Shield Termination	Solder

Part	Mating Cycles	Body Material	Contact Termination	Cable Group	Cable Group	Center Contact Material	Number of Ports	Center Contact Plating	Dielectric Material	Mounting Feature	Housing Color	Fastening Type	Connector Style	Connector Type	Impedance	Shield Termination	Frequency - Max [Max]
Amphenol SV Microwave SF8806-6006	500	Stainless Steel	Solder	0.085 in	RG-405	Beryllium Copper	1	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead	Silver	Snap-On	BZ	Male Pin Plug	50 Ohms	Solder	2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BZ Connector Plug, Male Pin 50 Ohms Panel Mount Solder
