6XV18016GN15

Active

Siemens

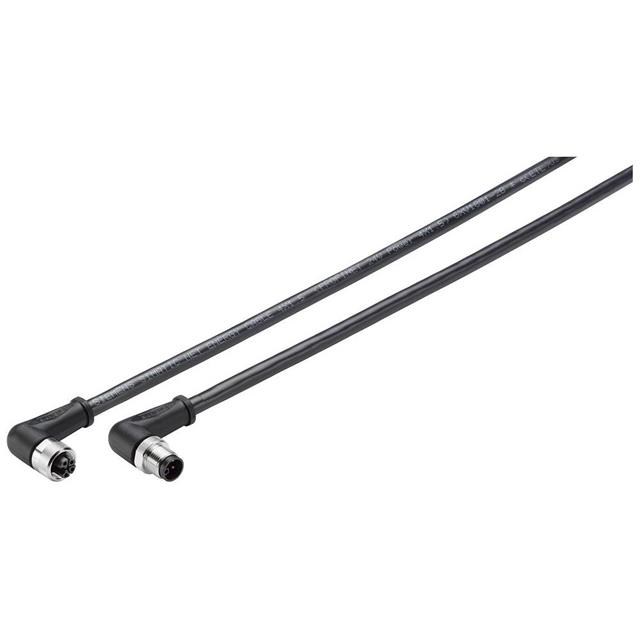

CBL 4POS RCPT RA TO PLUG 49.2'

Search across all available documentation for this part.

Active

Siemens

CBL 4POS RCPT RA TO PLUG 49.2'

Technical Specifications

Parameters and characteristics for this part

Specification	6XV18016GN15

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Length [x]	15 m
Length [x]	49.2 ft
Shielding	Unshielded

Part	Cable Material	1st Connector Number of Positions	2nd Connector Shell Size - Insert	Color	Length [x]	Length [x]	1st Connector Gender	2nd Connector Number of Positions	2nd Connector Type	Shielding	1st Connector Type	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	2nd Connector Mounting Type	Assembly Configuration	Cable Type	2nd Connector Gender	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded
Siemens 6XV18016GH20	Polyvinyl Chloride (PVC)	4	M12	Black	2 m	6.56 ft	Male Pins	4	Plug Right Angle	Unshielded	Receptacle Right Angle	Free Hanging (In-Line)	All	Free Hanging (In-Line)	Standard	Round	Female Sockets	M12	All
Siemens 6XV18016GN15	Polyvinyl Chloride (PVC)	4	M12	Black	15 m	49.2 ft	Male Pins	4	Plug Right Angle	Unshielded	Receptacle Right Angle	Free Hanging (In-Line)	All	Free Hanging (In-Line)	Standard	Round	Female Sockets	M12	All
Siemens 6XV18016GN10	Polyvinyl Chloride (PVC)	4	M12	Black			Male Pins	4	Plug Right Angle	Unshielded	Receptacle Right Angle	Free Hanging (In-Line)	All	Free Hanging (In-Line)	Standard	Round	Female Sockets	M12	All
Siemens 6XV18016GH30	Polyvinyl Chloride (PVC)	4	M12	Black	3 m	9.84 ft	Male Pins	4	Plug Right Angle	Unshielded	Receptacle Right Angle	Free Hanging (In-Line)	All	Free Hanging (In-Line)	Standard	Round	Female Sockets	M12	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 186.12

General part information

Circular Cable Assembly Unshielded 49.2' (15.00m)
