5606331

Obsolete

Phoenix Contact

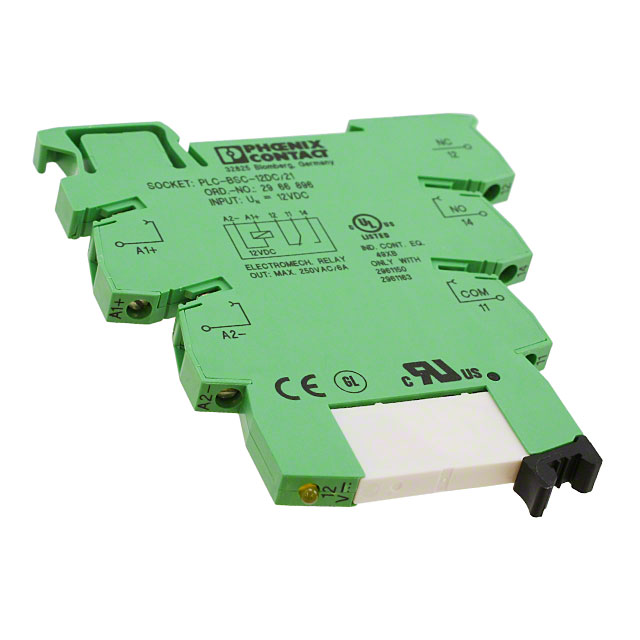

RELAY GEN PURPOSE SPDT 6A 12V

Search across all available documentation for this part.

Documents5606331

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 12V

Documents5606331

Technical Specifications

Parameters and characteristics for this part

Specification	5606331

Approval Agency	UKCA, CE
Coil Current	15.3 mA
Coil Resistance	784.314 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	5 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Time	Approval Agency	Operate Time	Contact Material	Termination Style	Coil Current	Contact Rating (Current)	Coil Type	Relay Type	Coil Voltage	Contact Form	Features	Switching Voltage	Coil Resistance
Phoenix Contact 5606331	-20 C	60 °C	DIN Rail	8 ms	CE UKCA	5 ms	Silver Tin Oxide (AgSnO)	Screw Terminal	15.3 mA	6 A	Non Latching	General Purpose	12 VDC	SPDT (1 Form C)	Lighted Indicator Socket Included	250 VAC 250 VDC	784.314 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
