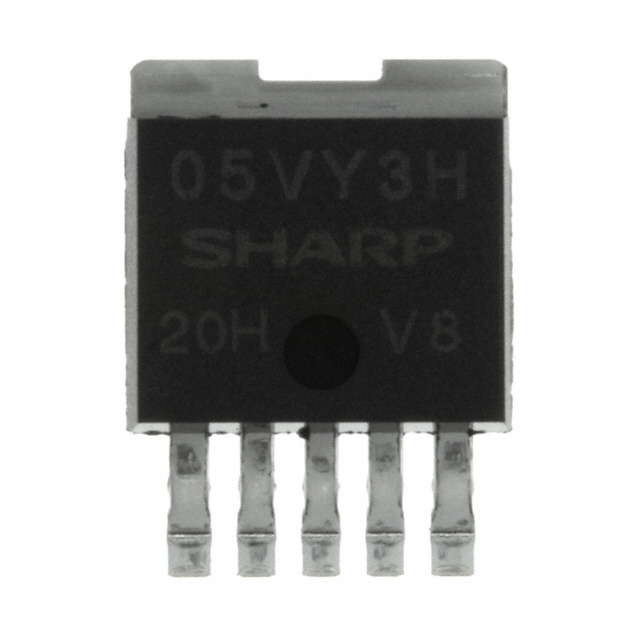

PQ05VY3H3ZPH

Obsolete

Sharp Microelectronics

IC REG LINEAR POS ADJ 3.5A TO263

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

IC REG LINEAR POS ADJ 3.5A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	PQ05VY3H3ZPH

Control Features	Enable
Current - Output	3.5 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	TO-263
Voltage - Input (Max) [Max]	7 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	1.5 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Current - Output	PSRR	Mounting Type	Current - Quiescent (Iq)	Output Configuration	Supplier Device Package	Output Type	Voltage - Output (Min/Fixed)	Protection Features	Voltage - Output (Max)	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Regulators	Control Features	Voltage Dropout (Max) [Max]	Output Type
Sharp Microelectronics PQ05VY3H3ZPH	3.5 A	70 dB	Surface Mount	10 mA	Positive	TO-263	Adjustable	1.5 V	Over Current Over Temperature	5 V	7 V	-20 C	80 C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1	Enable	0.5 V
Sharp Microelectronics PQ05RD21	2 A	55 dB	Through Hole	10 mA	Positive	TO-220-4		5 V	Over Current Over Temperature		20 V	-20 C	80 C	TO-220-4	1	Enable	0.5 V	1.81 mOhm
Sharp Microelectronics PQ05RD11	1 A	55 dB	Through Hole	10 mA	Positive	TO-220-4		5 V	Over Current Over Temperature		20 V	-20 C	80 C	TO-220-4	1	Enable	0.5 V	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 3.5A TO-263
