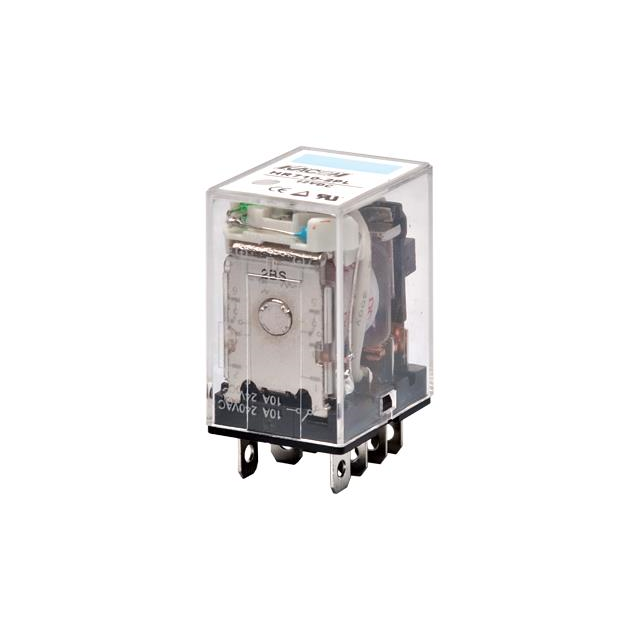

HR710-2PLC-220VAC

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 220V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR710-2PLC-220VAC

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 220V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR710-2PLC-220VAC

Coil Current	5.5 mA
Coil Voltage	220 VAC/DC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Surge Protection
Mounting Type	Socketable
Operate Time	25 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

HR710 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Mounting Type	Termination Style	Coil Current	Coil Voltage	Features	Contact Rating (Current)	Contact Material	Relay Type	Release Time	Operate Time	Switching Voltage
Kacon HR710-4PL-12VDC	55 °C	-25 °C	4PDT (4 Form C)	Socketable	Plug In	125 mA	12 VDC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PL-12VDC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	75 mA	12 VDC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-4PL-220VAC	55 °C	-25 °C	4PDT (4 Form C)	Socketable	Plug In	11.4 mA	220 VAC/DC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PLC-220VAC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	5.5 mA	220 VAC/DC	Lighted Indicator Surge Protection	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PLD-12VDC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	75 mA	12 VDC	Diode Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-4PL-24VAC	55 °C	-25 °C	4PDT (4 Form C)	Socketable	Plug In	104 mA	24 VAC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PL-110VAC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	10.9 mA	110 VAC/DC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PLD-24VDC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	37.5 mA	24 VDC	Diode Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PL-24VAC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	50 mA	24 VAC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC
Kacon HR710-2PL-220VAC	55 °C	-25 °C	DPDT (2 Form C)	Socketable	Plug In	5.5 mA	220 VAC/DC	Lighted Indicator	10 A	Gold (Au) Silver (Ag)	General Purpose	25 ms	25 ms	125 VDC 250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.60

Description

General part information

HR710 Series

General Purpose Relay DPDT (2 Form C) 220VAC Coil Socketable
