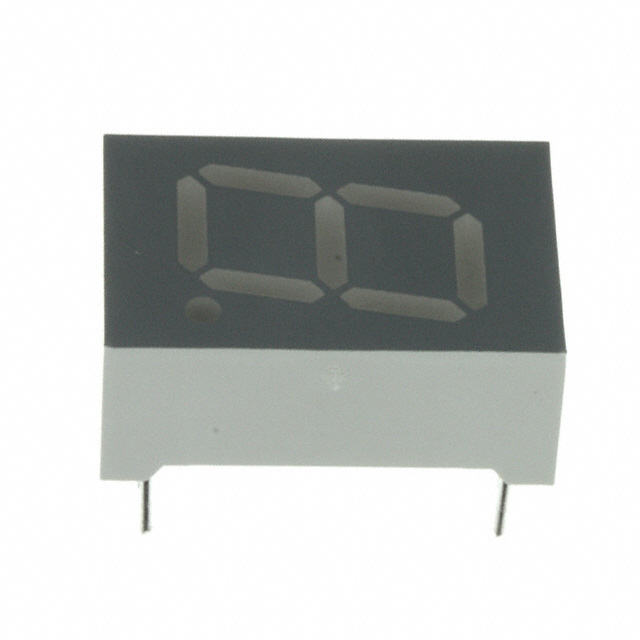

LDS-A502RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.5" SGL GRN 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-A502RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.5" SGL GRN 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-A502RI |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 12.7 mm |
| Digit/Alpha Size | 0.5 in |
| Display Type | 7-Segment |
| Millicandela Rating | 3.9 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [z] | 0.315 " |
| Size / Dimension [z] | 8 mm |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDS-A502 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 10mA 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Documents
Technical documentation and resources
No documents available
