K50LGRA1YNQ

Active

BANNER ENGINEERING

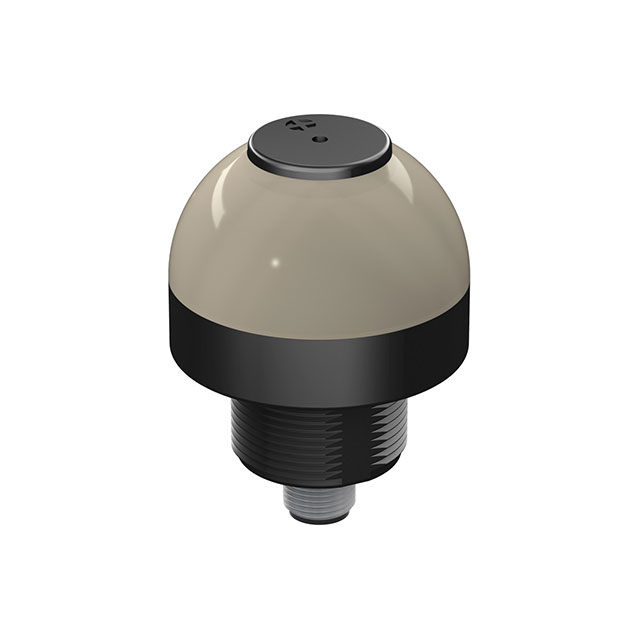

AUDIBLE INDICATOR, EZ-LIGHT, CONTINUOUS, 75DB, 30VDC, 40MA, IP50, 50MM EXT. DEPTH

Search across all available documentation for this part.

Active

BANNER ENGINEERING

AUDIBLE INDICATOR, EZ-LIGHT, CONTINUOUS, 75DB, 30VDC, 40MA, IP50, 50MM EXT. DEPTH

Technical Specifications

Parameters and characteristics for this part

Part	Type	Light Color	Function - Lighting	Ingress Protection	Function - Audible	Number of Stacks	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features
BANNER ENGINEERING K50LGRA1YNQ	Complete Unit	Green Red Yellow	Steady	IP50	Multiple	3	Connector	50 °C	-20 C	30 VDC	18
BANNER ENGINEERING K50LGRXPQP	Complete Unit	Green Red	Steady	IP67 IP69K		2	Cable with Connector	50 °C	-40 °C	30 VDC	18
BANNER ENGINEERING K50LGRXP	Complete Unit	Green Red	Steady	IP67 IP69K	Multiple	2	Wire Leads	50 °C	-40 °C	30 VDC	18
BANNER ENGINEERING K50LGRALSXPQ	Complete Unit	Green Red	Steady	IP67 - Dust Tight Waterproof	Multiple	2	Connector	50 °C	-20 C	30 VDC	12 V
BANNER ENGINEERING K50LGRY2N	Complete Unit	Green Red Yellow	Steady	IP67 IP69K	Multiple	3	Wire Leads	50 °C	-40 °C	30 VDC	18
BANNER ENGINEERING K50LGRY6PQ	Complete Unit	Green Red Yellow	Steady	IP67 IP69K	Multiple	3	Connector	50 °C	-20 C	30 VDC	18
BANNER ENGINEERING K50LGRXNQ	Complete Unit	Green Red	Steady	IP67 IP69K		2	Connector	50 °C	-40 °C	30 VDC	18
BANNER ENGINEERING K50LGRYA120	Complete Unit	Green Red Yellow	Steady	IP67 - Dust Tight Waterproof	Multiple	3	Wire Leads	50 °C	-40 °C	130 VAC	85 VAC
BANNER ENGINEERING K50LGRA1YNQP	Complete Unit	Green Red Yellow	Steady	IP50	Continuous	3	M12	50 °C	-20 C	30 VDC	18	Alarm
BANNER ENGINEERING K50LGRY6PQPMA	Complete Unit	Green Red Yellow	Steady	IP67 IP69K	Multiple	3	Cable with Connector	50 °C	-20 C	30 VDC	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 148.00
Newark	Each	1	$ 144.01

General part information

Stack Light Complete Unit Green, Red, Yellow LED Connector
