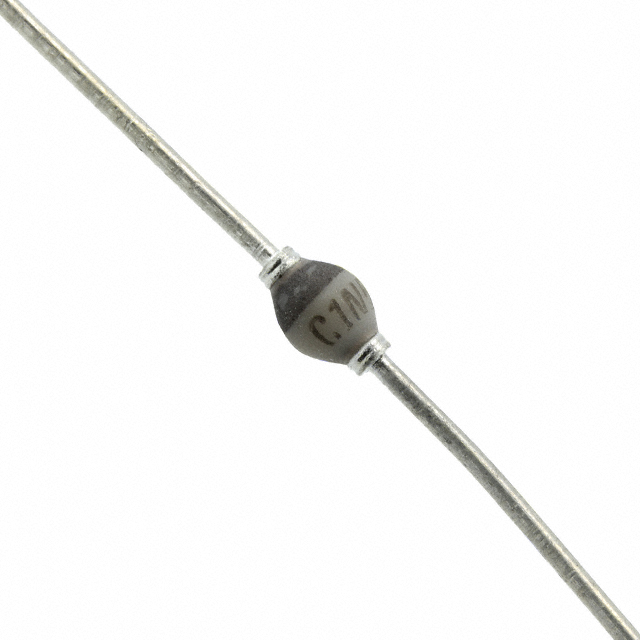

1N4946 BK

Obsolete

Central Semiconductor Corp

DIODE STANDARD 600V 1A GPR1A

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

DIODE STANDARD 600V 1A GPR1A

Technical Specifications

Parameters and characteristics for this part

Specification	1N4946 BK

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Package / Case	R-1, Axial
Reverse Recovery Time (trr)	250 ns
Speed	200 mA, 500 ns
Supplier Device Package	GPR-1A
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Speed	Reverse Recovery Time (trr)
Central Semiconductor Corp 1N4946 BK	1 µA	Through Hole	R-1 Axial	1.3 V	GPR-1A	Standard	600 V	1 A	200 mA 500 ns	250 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 1A Through Hole GPR-1A
