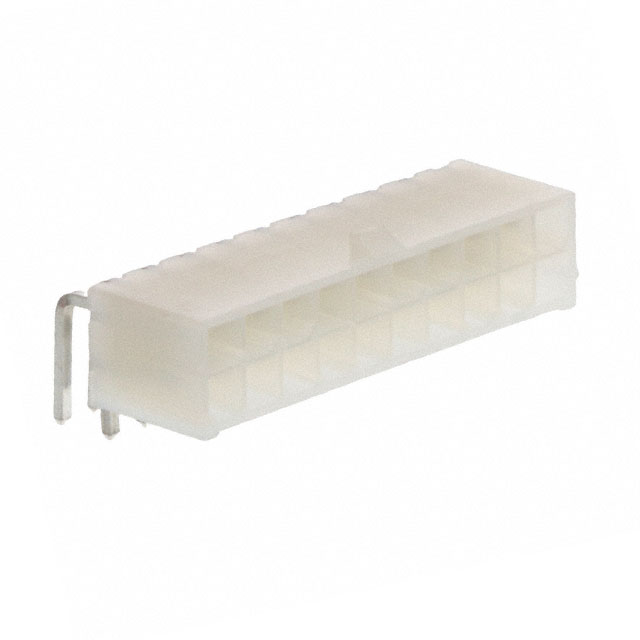

0353182020

Active

Molex

CONN HEADER R/A 20POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

0353182020

Active

Molex

CONN HEADER R/A 20POS 4.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0353182020

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.3 mm
Contact Length - Mating	0.208 in
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

035318 Series

Part	Fastening Type	Material Flammability Rating	Style	Applications	Contact Material	Connector Type	Voltage Rating	Number of Rows	Current Rating (Amps)	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions
Molex 0353182220	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header	250 VAC	2	Varies by Wire Gauge	Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.209 in	5.3 mm	Solder	Shrouded - 4 Wall	-40 °C	105 ░C	22 positions
Molex 0353181620	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header	250 VAC	2	Varies by Wire Gauge	Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.209 in	5.3 mm	Solder	Shrouded - 4 Wall	-40 °C	105 ░C		16
Molex 0353180820	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			8
Molex 0353182020	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			20
Molex 0353181220	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			12
Molex 0353180620	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			6
Molex 0353180420	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			4
Molex 0353181420	Locking Ramp	UL94 V-2	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Header		2		Polyamide (PA66) Nylon 6/6	0.173 in	4.4 mm	Tin	Through Hole Right Angle	4.2 mm	0.165 in	All	Square	Natural	4.2 mm	0.165 in	Male Pin	0.208 in	5.3 mm	Solder	Shrouded - 4 Wall			14
Molex 0353180421

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 1.21
		100	$ 1.01
		1800	$ 0.76
		5400	$ 0.71
		10800	$ 0.67

Description

General part information

035318 Series

Connector Header Through Hole, Right Angle 20 position 0.165" (4.20mm)
