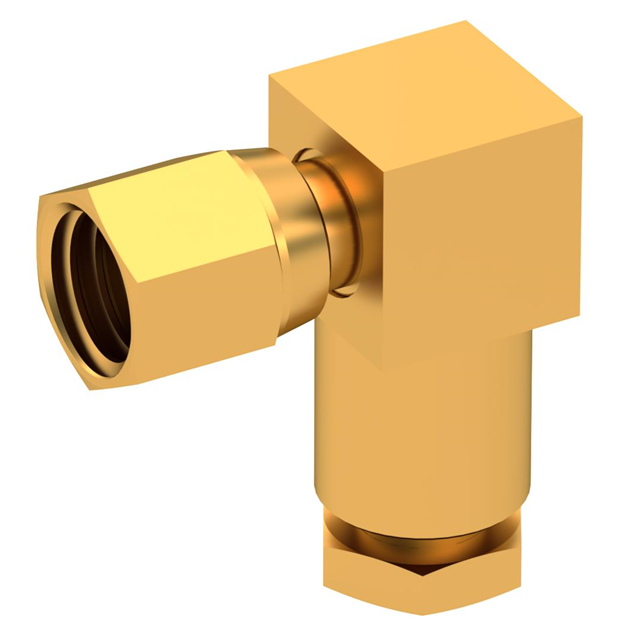

1005-1551-002

Active

Radiall USA, Inc.

SMC F RA NA CL 2/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA CL 2/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1005-1551-002

Body Finish	Nickel
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Shield Termination	Insertion Loss	Housing Color	Number of Ports	Body Material	Mounting Type	Dielectric Material	Impedance	Contact Termination	Center Contact Plating	Mating Cycles	Frequency - Max [Max]	Body Finish	Center Contact Material	Cable Group	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Style	Includes	Connector Type
Radiall USA, Inc. 1005-1551-002	Clamp	0.5 dB	Silver	1	Brass	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	50 Ohms	Solder	Gold	500	10 GHz	Nickel	Beryllium Copper	196	RG-178	-65 ░C	165 °C	250 VDC	SMC	1 Connector 1 Ferrule	Female Socket Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
