R143412700

Active

Radiall USA, Inc.

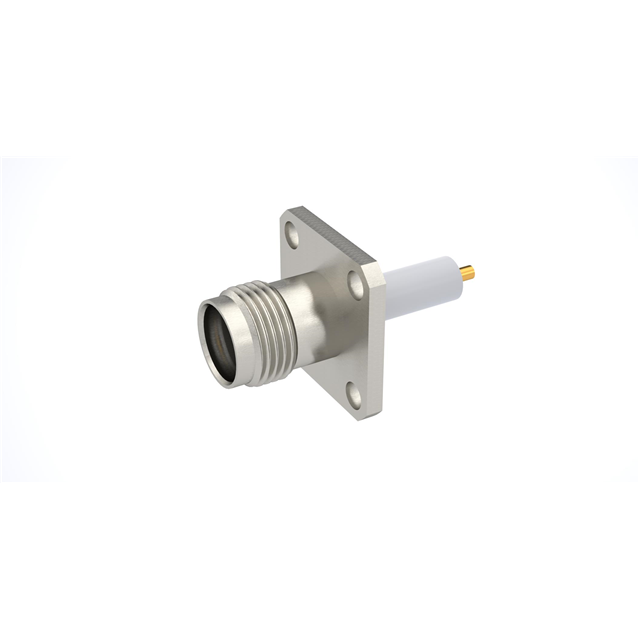

TNC 18 / SQUARE FLANGE JACK RECE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC 18 / SQUARE FLANGE JACK RECE

Technical Specifications

Parameters and characteristics for this part

Specification	R143412700

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Type	Number of Ports	Shield Termination	Connector Style	Voltage Rating	Frequency - Max [Max]	Contact Termination	Dielectric Material	Center Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mounting Feature	Body Material	Connector Type	Housing Color	Mating Cycles	Impedance
Radiall USA, Inc. R143412700	Panel Mount Through Hole	1	Solder	TNC	500 V	18 GHz	Solder	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Extended Insulation	-65 ░C	105 ░C	Gold	Flange	Stainless Steel	Female Socket Jack	Silver	500	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
