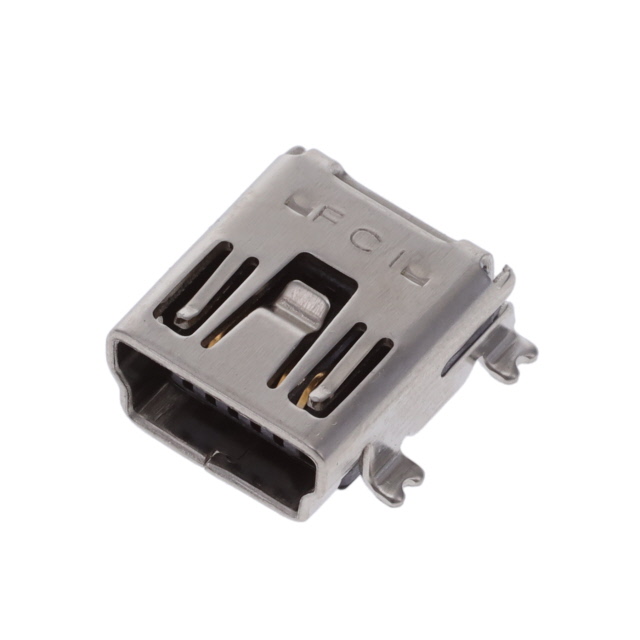

10033526-N3222MLF

Active

Amphenol ICC (FCI)

MINI USB B TYPE RECEPT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

MINI USB B TYPE RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	10033526-N3222MLF

Connector Type	USB - mini B
Contact Finish	Gold
Current Rating (Amps)	1 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage - Rated	30 V

Part	Material Flammability Rating	Current Rating (Amps)	Voltage - Rated	Number of Ports	Insulation Color	Number of Contacts	Gender	Features	Connector Type	Termination	Shell/Shielding Material	Mating Cycles	Shielding	Mounting Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Amphenol ICC (FCI) 10033526-N3222MLF	UL94 V-0	1 A	30 V	1	Black	5	Receptacle	Solder Retention	USB - mini B	Solder	Copper Alloy	5000	Shielded	Horizontal	Gold	-25 °C	85 °C	Surface Mount Right Angle
Amphenol ICC (FCI) 10033526-N3212LF	UL94 V-0	1 A	30 V	1	Black	5	Receptacle	Board Guide Solder Retention	USB - mini B	Solder	Copper Alloy	5000	Shielded	Horizontal	Gold	-25 °C	85 °C	Surface Mount Right Angle
