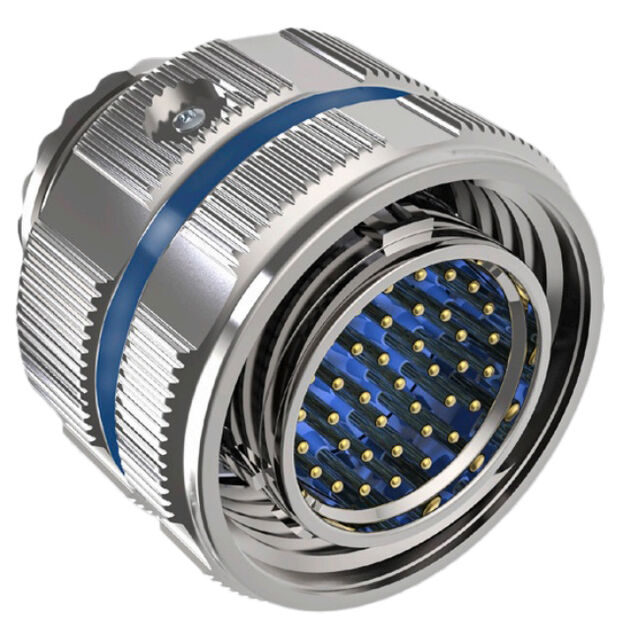

806-012-ZL10-8SBA

Active

Glenair

MIGHT MOUSE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

806-012-ZL10-8SBA

Active

Glenair

MIGHT MOUSE CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	806-012-ZL10-8SBA

Applications	Aerospace
Backshell Material, Plating	Aluminum
Cable Opening [diameter]	12.29 mm
Cable Opening [diameter]	0.484 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 7.5 A
Features	Coupling Nut
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	8, 8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Stainless Steel, Aluminum
Shell Size - Insert [Max]	10
Shell Size - Insert [Min]	8
Shielding	Unshielded
Termination	Crimp
Voltage Rating	1.8 kVAC

806-012 Series

Part	Connector Type	Color	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Shielding	Applications	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Current Rating (Amps)	Shell Material	Contact Finish - Mating	Number of Positions	Contact Material	Shell Finish	Primary Material	Mounting Type	Voltage Rating
Glenair 806-012-ME16-60SMA	Female Sockets Plug	Silver	60	-65 ░C	200 °C	16	60	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum	Gold	60	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-ME20-110PMA	Male Pins Plug	Silver		-65 ░C	200 °C	20	110	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum	Gold	110 110 positions	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-ME20-110PMB	Male Pins Plug	Silver		-65 ░C	200 °C	20	110	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	B	5 A	Aluminum	Gold	110 positions 110	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-MT9-11SMA	Female Sockets Plug	Silver		-65 ░C	200 °C 347 °F	9	11	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum	Gold	11 11	Copper Alloy	Nickel PTFE	Metal	Free Hanging (In-Line)
Glenair 806-012-ME20-110SMC	Female Sockets Plug	Silver		-65 ░C	200 °C	20	110	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	C	5 A	Aluminum	Gold	110 positions 110	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-ZL10-8SBA	Female Sockets Plug	Silver		-65 ░C	200 °C	8	10	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A 7.5 A	Aluminum Stainless Steel	Gold	8 8	Copper Alloy	Nickel	Metal	Free Hanging (In-Line)	1.8 kVAC
Glenair 806-012-ME16-60PBA	Male Pins Plug	Silver	60	-65 ░C	200 °C	16	60	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum	Gold	60	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-NF16-60PBB	Male Pins Plug	Olive Drab Silver	60	-65 ░C	200 °C 347 °F	16	60	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	B	5 A	Aluminum	Gold	60	Copper Alloy	Olive Drab Cadmium	Metal	Free Hanging (In-Line)
Glenair 806-012-ZL16-60PBA	Male Pins Plug	Silver	60	-65 ░C	200 °C	16	60	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum Stainless Steel	Gold	60	Copper Alloy	Nickel	Metal	Free Hanging (In-Line)
Glenair 806-012-ME18-85SMA	Female Sockets Plug	Silver		-65 ░C	200 °C	18	85	Crimp	Environment Resistant	1.27 µm	50 µin	Coupling Nut	Unshielded	Aerospace	Aluminum	12.29 mm	0.484 in	A	5 A	Aluminum	Gold	85 85	Copper Alloy	Electroless Nickel	Metal	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2706.08
		4	$ 2045.14
		10	$ 1278.22
		20	$ 978.94
		50	$ 748.22
	Bulk	1	$ 1781.53

Description

General part information

806-012 Series

8 Position Circular Connector Plug, Female Sockets Crimp
