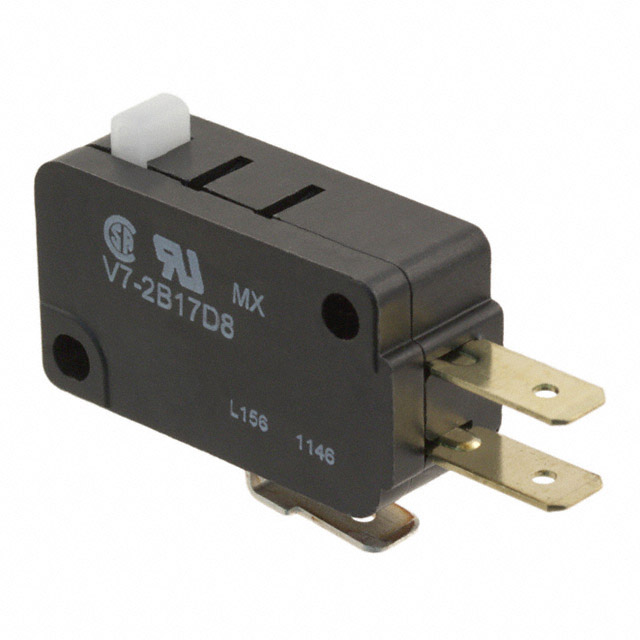

V7-2B17D8
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-2B17D8
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-2B17D8 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 11 A, 500 mA |
| Differential Travel | 0.25 mm |
| Differential Travel | 0.01 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 75 gf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.27 mm |
| Overtravel | 0.05 in |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 10 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.36 | |
| 10 | $ 2.78 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.44 | |||
| 100 | $ 2.30 | |||
| 300 | $ 2.11 | |||
| 500 | $ 2.09 | |||
Description
General part information
V7-2B1 Series
Switch SPDT Chassis Mount
