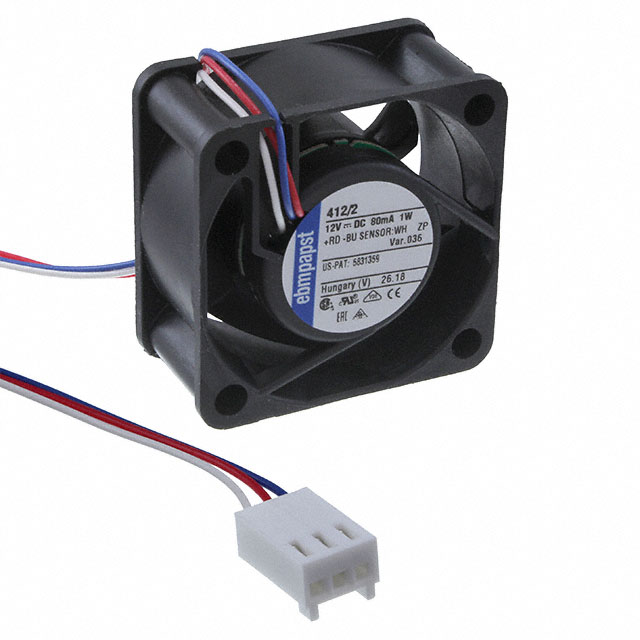

412/2-036
Activeebm-papst Inc.
DC FAN AXIAL SLEEVE BEARING 12V 10V TO 14V 5.9CFM 18DB 40 X 40 X 20MM SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
412/2-036
Activeebm-papst Inc.
DC FAN AXIAL SLEEVE BEARING 12V 10V TO 14V 5.9CFM 18DB 40 X 40 X 20MM SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 412/2-036 |
|---|---|
| Air Flow | 5.9 CFM |
| Air Flow | 0.165 m³/min |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 18 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 0.9 W |
| RPM | 6000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 14 V |
| Voltage Range [Min] | 10 VDC |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.90 | |
| 10 | $ 22.74 | |||
| 25 | $ 21.88 | |||
| 50 | $ 20.44 | |||
| 100 | $ 18.85 | |||
| 250 | $ 18.57 | |||
| 500 | $ 18.42 | |||
Description
General part information
412/2 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sintec 5.9 CFM (0.165m³/min) 3 Wire Leads
Documents
Technical documentation and resources
