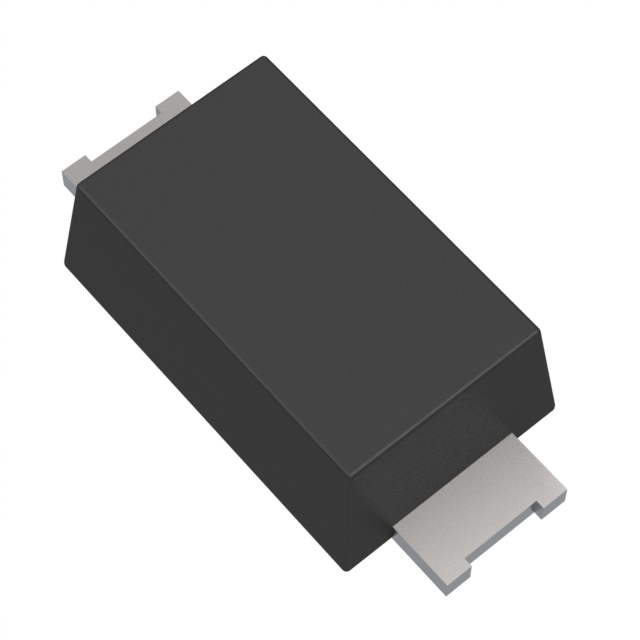

MP01EA03-TE8L3

Active

Kyocera AVX

DIODE SCHOTTKY 30V 1A SOD123FL

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE SCHOTTKY 30V 1A SOD123FL

Technical Specifications

Parameters and characteristics for this part

Specification	MP01EA03-TE8L3

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123F
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123FL
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	450 mV

Part	Package / Case	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package
Kyocera AVX MP01EA03-TE8L3	SOD-123F	1 A	Schottky	30 V	450 mV	Surface Mount	200 mA 500 ns	100 µA	150 °C	-55 °C	SOD-123FL
Kyocera AVX MP01EA06-TE8L3	SOD-123F	1 A	Schottky	60 V	600 mV	Surface Mount	200 mA 500 ns	100 µA	150 °C	-55 °C	SOD-123FL
Kyocera AVX MP01EA045-TE8L3	SOD-123F	1 A	Schottky	45 V	550 mV	Surface Mount	200 mA 500 ns	100 µA	150 °C	-55 °C	SOD-123FL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 1A Surface Mount SOD-123FL
