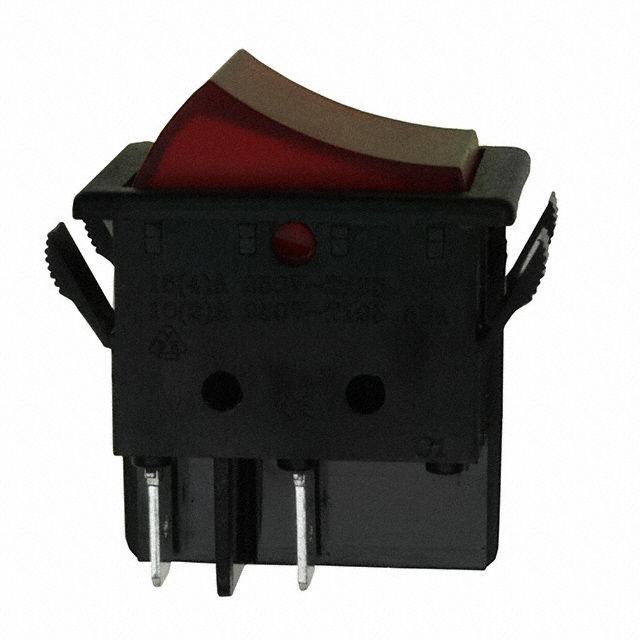

WRG32F2BBRLN

Active

ZF Electronics

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	WRG32F2BBRLN

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	16 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	125 VAC
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Circuit	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color	Mounting Type	Electrical Life	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Current Rating (Amps)	Switch Function	Illumination Voltage (Nominal)
ZF Electronics WRG32F2BBRLN	125 V	DPST	Red	No Marking	Neon Red	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved) - Illuminated	16 A	On-Off	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.86

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
