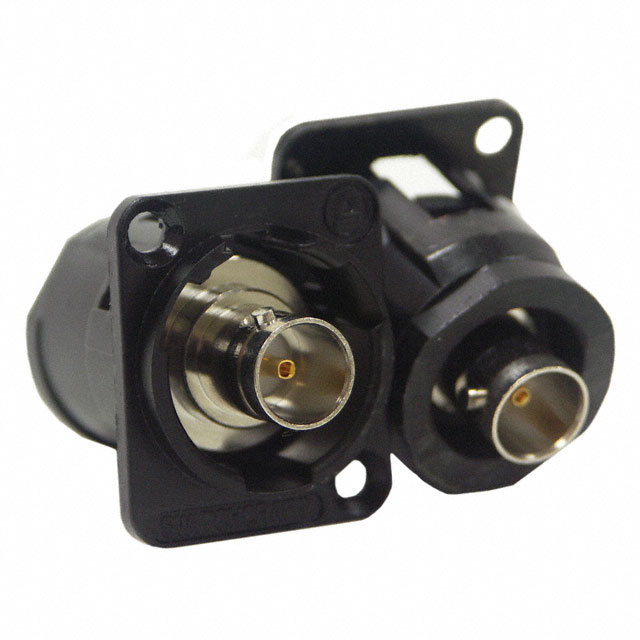

EHBNC2B
ActiveSwitchcraft Inc.
CONN ADAPT JACK-JACK BNC 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHBNC2B
ActiveSwitchcraft Inc.
CONN ADAPT JACK-JACK BNC 75 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EHBNC2B |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Copper Alloy |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Fastening Type | Bayonet Lock |
| Features | Isolated |
| Impedance | 75 Ohms |
| Mounting Feature | Flange |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.77 | |
| 25 | $ 14.60 | |||
| 100 | $ 12.70 | |||
Description
General part information
EHBNC2 Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
