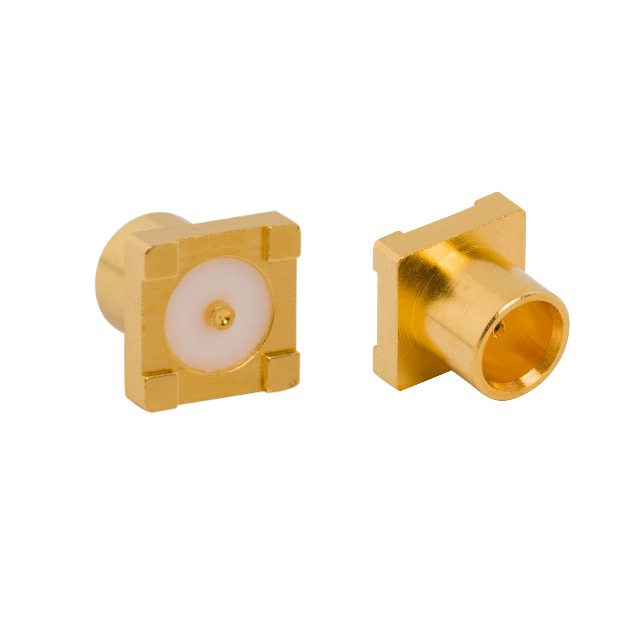

919-226J-71P

Active

Amphenol RF

CONN MCX RCPT STR 75 OHM SMD

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX RCPT STR 75 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	919-226J-71P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	1 GHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Contact Termination	Body Finish	Number of Ports	Shield Termination	Insertion Loss	Frequency - Max [Max]	Impedance	Housing Color	Mating Cycles	Center Contact Plating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Material	Connector Type	Connector Style	Fastening Type
Amphenol RF 919-226J-71P	Beryllium Copper	Solder	Gold	1	Solder	0.1 dB	1 GHz	75 Ohms	Gold	500	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Surface Mount	Brass	Female Socket Receptacle	MCX	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 5.67

General part information

MCX Connector Receptacle, Female Socket 75 Ohms Surface Mount Solder
