32RK647-302L5

Active

Rosenberger

CONN RP-SMA JACK STR 50OHM SOLDR

Search across all available documentation for this part.

Active

Rosenberger

CONN RP-SMA JACK STR 50OHM SOLDR

Technical Specifications

Parameters and characteristics for this part

Specification	32RK647-302L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms

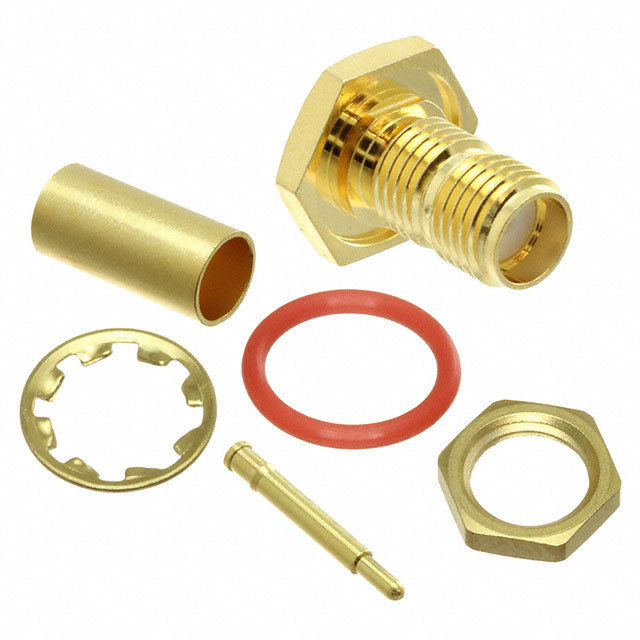

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	480 V

Part	Voltage Rating	Connector Style	Housing Color	Center Contact Material	Connector Type	Number of Ports	Frequency - Max [Max]	Center Contact Plating	Body Finish	Cable Group	Contact Termination	Impedance	Includes	Mounting Feature	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Material
Rosenberger 32RK647-302L5	480 V	RP-SMA	Gold	Beryllium Copper	Jack Male Pin	1	12.4 GHz	Gold	Gold	188A 316 RG-174A	Solder	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 28.30

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder
