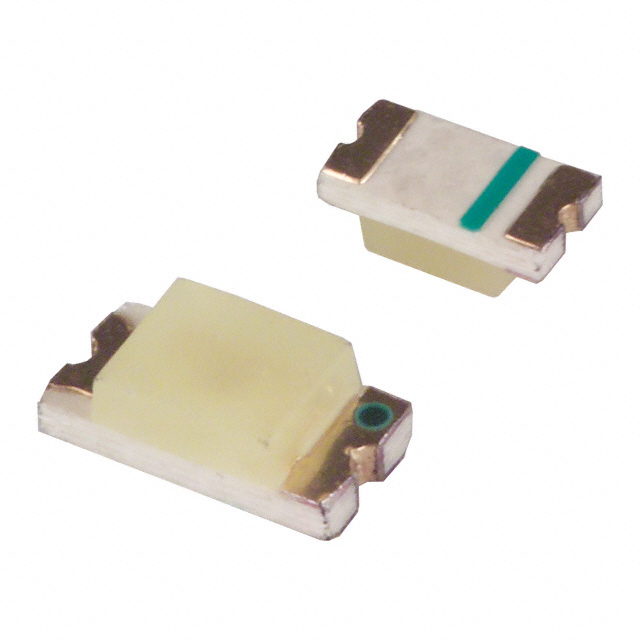

SML-LX1206SUGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR 1206 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX1206SUGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR 1206 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX1206SUGC-TR

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	45 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.2 V

SML-LX1206 Series

Part	Supplier Device Package	Lens Transparency	Lens Size [y]	Lens Size [x]	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Millicandela Rating	Wavelength - Peak	Viewing Angle	Mounting Type	Lens Color	Height (Max) [Max] [z]	Configuration	Color	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SML-LX1206SOC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	70 mcd	610 nm	140 °	Surface Mount	Colorless	1.1 mm	Standard
Lumex Opto/Components Inc. SML-LX1206SGW-TR	1206	Diffused	1.6 mm	2 mm	1206 (3216 Metric)	2.2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	10 mcd	565 nm	160 °	Surface Mount	White	1.1 mm	Standard	Green
Lumex Opto/Components Inc. SML-LX1206IC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2 V	20 mA	1.5 mm	3.2 mm	Rectangle with Flat Top	9 mcd		130 °	Surface Mount	Colorless	1.1 mm	Standard	Red	640 nm
Lumex Opto/Components Inc. SML-LX1206GC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2.2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	10 mcd	565 nm	160 °	Surface Mount	Colorless	1.1 mm	Standard	Green
Lumex Opto/Components Inc. SML-LX1206UWW-TR	1206	Diffused	1.6 mm	2 mm	1206 (3216 Metric)	3.5 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	90 mcd	550 nm	140 °	Surface Mount	Yellow	1.1 mm	Standard	White
Lumex Opto/Components Inc. SML-LX1206SYC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	70 mcd	590 nm	140 °	Surface Mount	Colorless	1.1 mm	Standard	Yellow
Lumex Opto/Components Inc. SML-LX1206YC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	39 mcd	590 nm	130 °	Surface Mount	Colorless	1.1 mm	Standard	Yellow
Lumex Opto/Components Inc. SML-LX1206SUGC-TR	1206	Clear	1.5 mm	2 mm	1206 (3216 Metric)	2.2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	45 mcd		140 °	Surface Mount	Colorless	1.1 mm	Standard	Green
Lumex Opto/Components Inc. SML-LX1206GW-TR	1206	Diffused	1.6 mm	2 mm	1206 (3216 Metric)	2.2 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	10 mcd	565 nm	160 °	Surface Mount	White	1.1 mm	Standard	Green
Lumex Opto/Components Inc. SML-LX1206SRW-TR	1206	Diffused	1.6 mm	2 mm	1206 (3216 Metric)	1.8 V	20 mA	1.6 mm	3.2 mm	Rectangle with Flat Top	15 mcd	660 nm	160 °	Surface Mount	White	1.1 mm	Standard	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
		10	$ 0.23
		100	$ 0.15
		500	$ 0.11
		1000	$ 0.10
	Digi-Reel®	1	$ 0.41
		10	$ 0.23
		100	$ 0.15
		500	$ 0.11
		1000	$ 0.10
	Tape & Reel (TR)	3000	$ 0.09
		6000	$ 0.08
		9000	$ 0.08
		15000	$ 0.08
		21000	$ 0.07
		30000	$ 0.07
		75000	$ 0.07
		150000	$ 0.07

Description

General part information

SML-LX1206 Series

Green LED Indication - Discrete 2.2V 1206 (3216 Metric)
