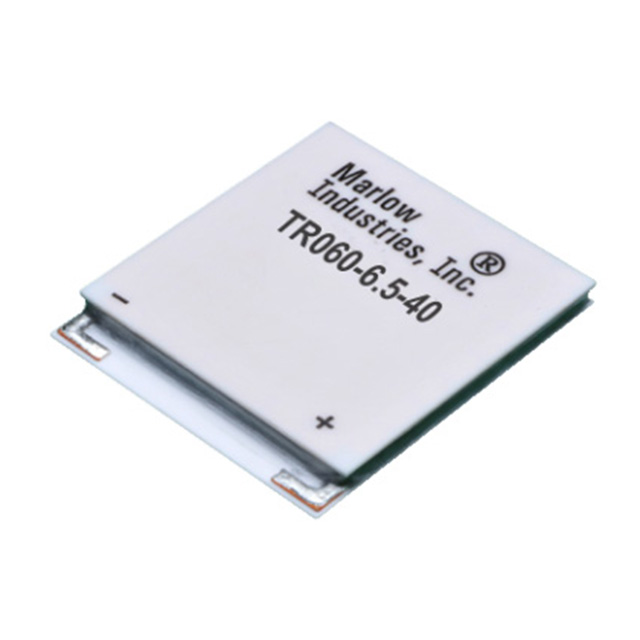

TR060-6.5-40-01LS
ActiveMarlow Industries, Inc.
TEM TRITON ICE 40.13X40.13X3.9MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR060-6.5-40-01LS
ActiveMarlow Industries, Inc.
TEM TRITON ICE 40.13X40.13X3.9MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR060-6.5-40-01LS |
|---|---|
| Current - Max [Max] | 6.5 A |
| Delta Tmax @ Th | 76 °C, 27 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.91 mm |
| Number of Stages | 1 |
| Qmax @ Th | 61 W |
| Resistance | 2.1 Ohms |
| Size / Dimension | Rectangular |
| Size / Dimension [x] | 44.7 mm |
| Size / Dimension [y] | 40.13 mm |
| Voltage - Max [Max] | 15.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 59.60 | |
| 5 | $ 56.16 | |||
| 10 | $ 54.43 | |||
| 25 | $ 52.71 | |||
| 50 | $ 51.33 | |||
| 100 | $ 49.95 | |||
Description
General part information
TR060 Series
Peltier Module 61.0W @ 27°C 6.5 A 85°C
