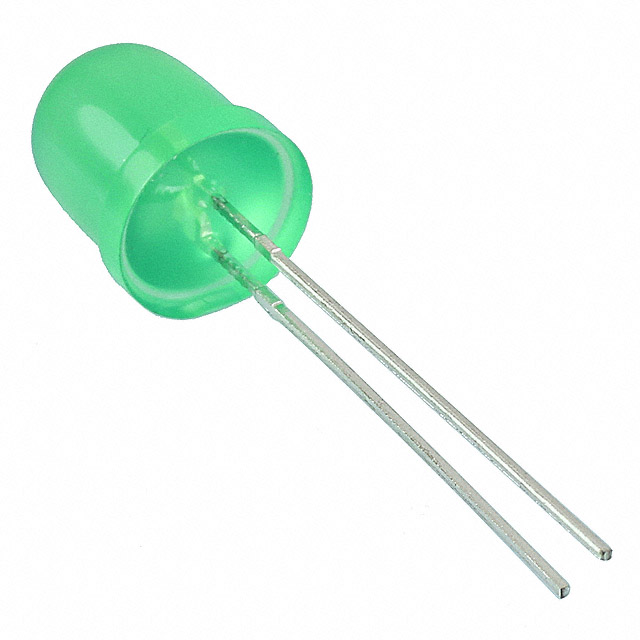

WP793GD

Active

Kingbright

LED GREEN DIFFUSED 8MM ROUND T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP793GD

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	11 mm
Lens Color	Green
Lens Size [diameter]	8 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	60 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [diameter]	8 mm
Supplier Device Package	8mm Round
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Dominant	568 nm
Wavelength - Peak	565 nm

WP793 Series

Part	Current - Test	Package / Case	Wavelength - Dominant	Color	Wavelength - Peak	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Supplier Device Package	Height (Max) [Max] [z]	Lens Transparency	Lens Style	Lens Size [diameter]	Mounting Type	Configuration	Millicandela Rating	Lens Color
Kingbright WP793ID	20 mA	Radial	617 nm	Red	627 nm	8 mm	2 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	60 mcd	Red
Kingbright WP793YD	20 mA	Radial	588 nm	Yellow	590 nm	8 mm	2.1 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	50 mcd	Yellow
Kingbright WP793SRD/G	20 mA	Radial	640 nm	Red	660 nm	8 mm	1.85 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	1500 mcd	Red
Kingbright WP793ED	20 mA	Radial	617 nm		627 nm	8 mm	2 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	60 mcd	Orange
Kingbright WP793GD	20 mA	Radial	568 nm	Green	565 nm	8 mm	2.2 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	60 mcd	Green
Kingbright WP793SRC/D	20 mA	Radial	640 nm	Red	655 nm	8 mm	1.85 V	15 °	8mm Round	11 mm	Clear	Round with Domed Top	8 mm	Through Hole	Standard	800 mcd	Colorless
Kingbright WP793SRD/J4	20 mA	Radial	640 nm	Red	660 nm	8 mm	2.1 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	600 mcd	Red
Kingbright WP793SRD/H	20 mA	Radial	640 nm	Red	660 nm	8 mm	1.85 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	1800 mcd	Red
Kingbright WP793SRD/E	20 mA	Radial	640 nm	Red	655 nm	8 mm	1.85 V	30 °	8mm Round	11 mm	Diffused	Round with Domed Top	8 mm	Through Hole	Standard	180 mcd	Red
Kingbright WP793SRC/F	20 mA	Radial	640 nm	Red	660 nm	8 mm	1.85 V	15 °	8mm Round	11 mm	Clear	Round with Domed Top	8 mm	Through Hole	Standard	3800 mcd	Colorless

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.43
		10	$ 0.27
		100	$ 0.15
		1000	$ 0.12
		2000	$ 0.11
		6000	$ 0.10
		10000	$ 0.09
		26000	$ 0.09

Description

General part information

WP793 Series

Green 568nm LED Indication - Discrete 2.2V Radial
