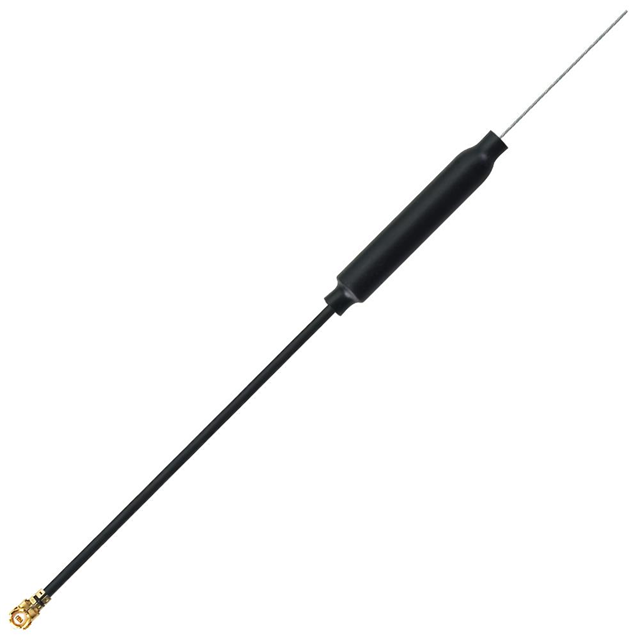

CBD01.07.0100C
ActiveTAOGLAS
RF ANT 4.9GHZ WHIP STR CONN MT
Deep-Dive with AI
Search across all available documentation for this part.
CBD01.07.0100C
ActiveTAOGLAS
RF ANT 4.9GHZ WHIP STR CONN MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBD01.07.0100C |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Wi-Fi, ISM |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 4.9 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 3.24 dBi |
| Height (Max) | 4.7 mm |
| Height (Max) [Max] | 0.185 " |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| Return Loss | -10 dB |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.85 | |
| 100 | $ 11.78 | |||
| 500 | $ 11.62 | |||
| 1000 | $ 9.30 | |||
Description
General part information
CBD01.07 Series
RF ANTENNA ISM, Wi-Fi Whip, Straight U.FL (UMCC), I-PEX MHF1 Connector Mount
