333-056-524-203
ActiveEDAC Inc.

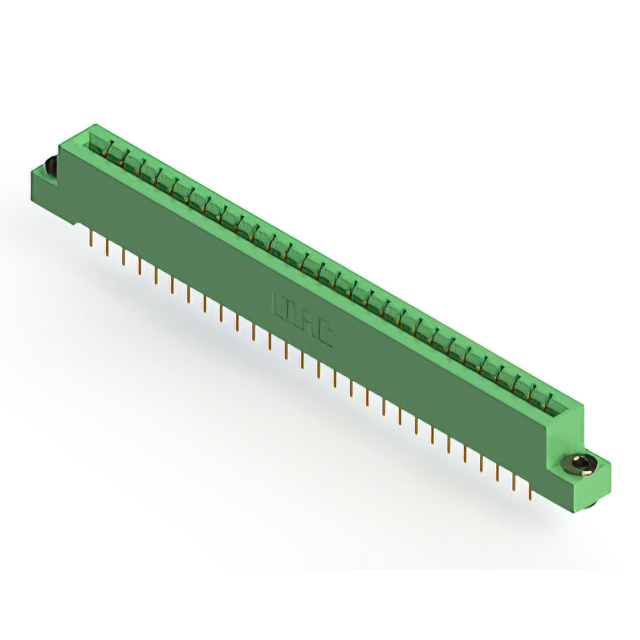

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-056-524-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-056-524-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
333-056 Series
...
| Part | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Color | Gender | Material - Insulation | Termination | Termination Rows | Contact Type | Read Out | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 28 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | |||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | 28 | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 28 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 2 | Green | Female | Polyester Thermoplastic | Wire Wrap | 2 | Cantilever | Dual | |||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 28 | 4-40 Threaded Insert Top Mount Opening | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | |||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 28 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | |||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole | 28 | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | 28 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Green | Female | Polyester Thermoplastic | Wire Wrap | 2 | Cantilever | Dual | |||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | 28 | 2 | Green | Female | Polyester Thermoplastic | Wire Wrap | 2 | Cantilever | Dual | ||||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | 28 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual | Card Extender | ||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | 28 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Green | Female | Polyester Thermoplastic | Solder | 2 | Cantilever | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-056 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
