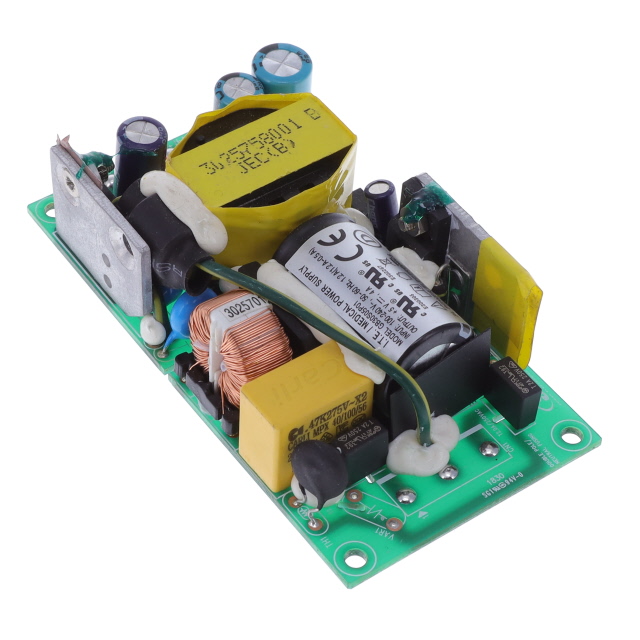

GB30S05P01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
GB30S05P01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GB30S05P01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, DEMKO, CE |
| Current - Output 1 | 4 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 91.9 mm |
| Size / Dimension [x] | 3.62 in |
| Size / Dimension [y] | 48 mm |
| Size / Dimension [y] | 1.89 in |
| Size / Dimension [z] | 20.9 mm |
| Size / Dimension [z] | 0.82 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GB30S05 Series
Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
