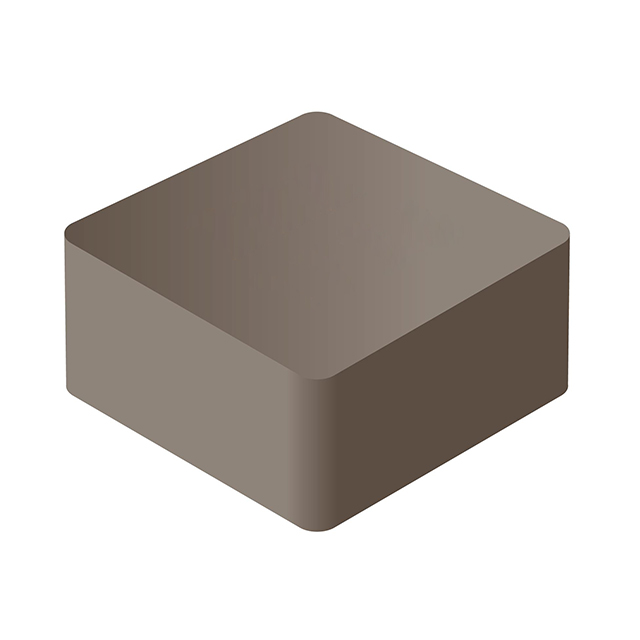

SRP5030CA-R16M
ActiveBourns Inc.
IND,5.5X5.3X2.9MM,0.16UH20%,22.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRP5030CA-R16M
ActiveBourns Inc.
IND,5.5X5.3X2.9MM,0.16UH20%,22.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP5030CA-R16M |
|---|---|
| Current - Saturation (Isat) | 35 A |
| Current Rating (Amps) | 22.2 A |
| DC Resistance (DCR) [Max] | 2.33 mOhm |
| Frequency - Self Resonant | 140 MHz |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Inductance | 160 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.217 " |
| Size / Dimension [x] | 5.5 mm |
| Size / Dimension [y] | 0.209 in |
| Size / Dimension [y] | 5.3 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.15 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.88 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.35 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.15 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.88 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.76 | |||
| Tape & Reel (TR) | 2000 | $ 0.76 | ||
| 4000 | $ 0.74 | |||
| 6000 | $ 0.71 | |||
| 10000 | $ 0.69 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.76 | |
| 4000 | $ 0.69 | |||
| 6000 | $ 0.66 | |||
| 10000 | $ 0.65 | |||
Description
General part information
SRP5030CA Series
160 nH Shielded Drum Core, Wirewound Inductor 22.2 A 2.33mOhm Max Nonstandard
