AP64502QSP-EVM

Active

Diodes Inc

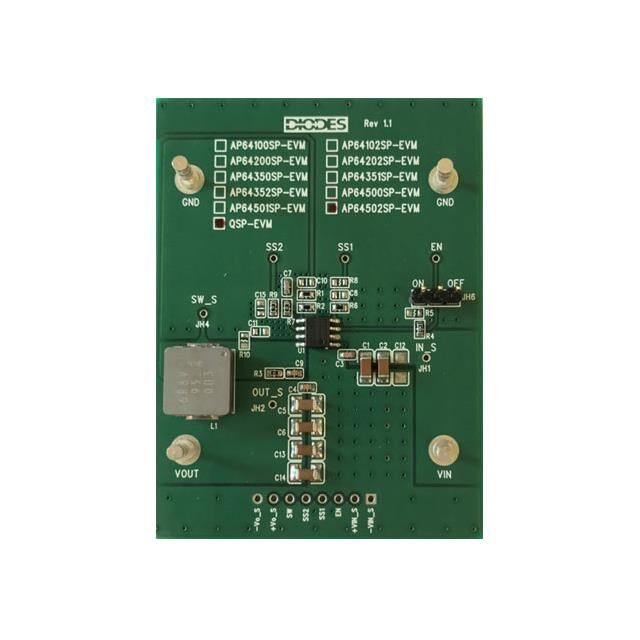

EVAL BOARD FOR AP64502Q

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AP64502Q

Technical Specifications

Parameters and characteristics for this part

Specification	AP64502QSP-EVM

Board Type	Fully Populated
Contents	Board(s)
Current - Output	5 A
Main Purpose	DC/DC, Step Down
Outputs and Type	1 Non-Isolated Output, Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP64502Q
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3.8 V
Voltage - Output	5 V

Part	Utilized IC / Part	Supplied Contents	Main Purpose	Board Type	Outputs and Type	Contents	Current - Output	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Outputs and Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Grade	Mounting Type	Function	Topology	Qualification	Output Configuration	Package / Case	Package / Case	Package / Case	Voltage - Output (Max) [Max]	Output Type	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Supplier Device Package
Diodes Inc AP64502QSP-EVM	AP64502Q	Board(s)	DC/DC Step Down	Fully Populated	1 Non-Isolated Output Non-Isolated	Board(s)	5 A	Buck	3.8 V	40 V	5 V	1
Diodes Inc AP64502QSP-13							5 A						100 kHz	2.2 MHz	Automotive	Surface Mount	Step-Down	Buck	AEC-Q100	Positive	0.154 in	8-SOIC	3.9 mm	40 V	Adjustable	1	3.8 V	-40 °C	125 °C	0.8 V		8-SO-EP
