PE25203A-V

Active

Murata Power Solutions Inc.

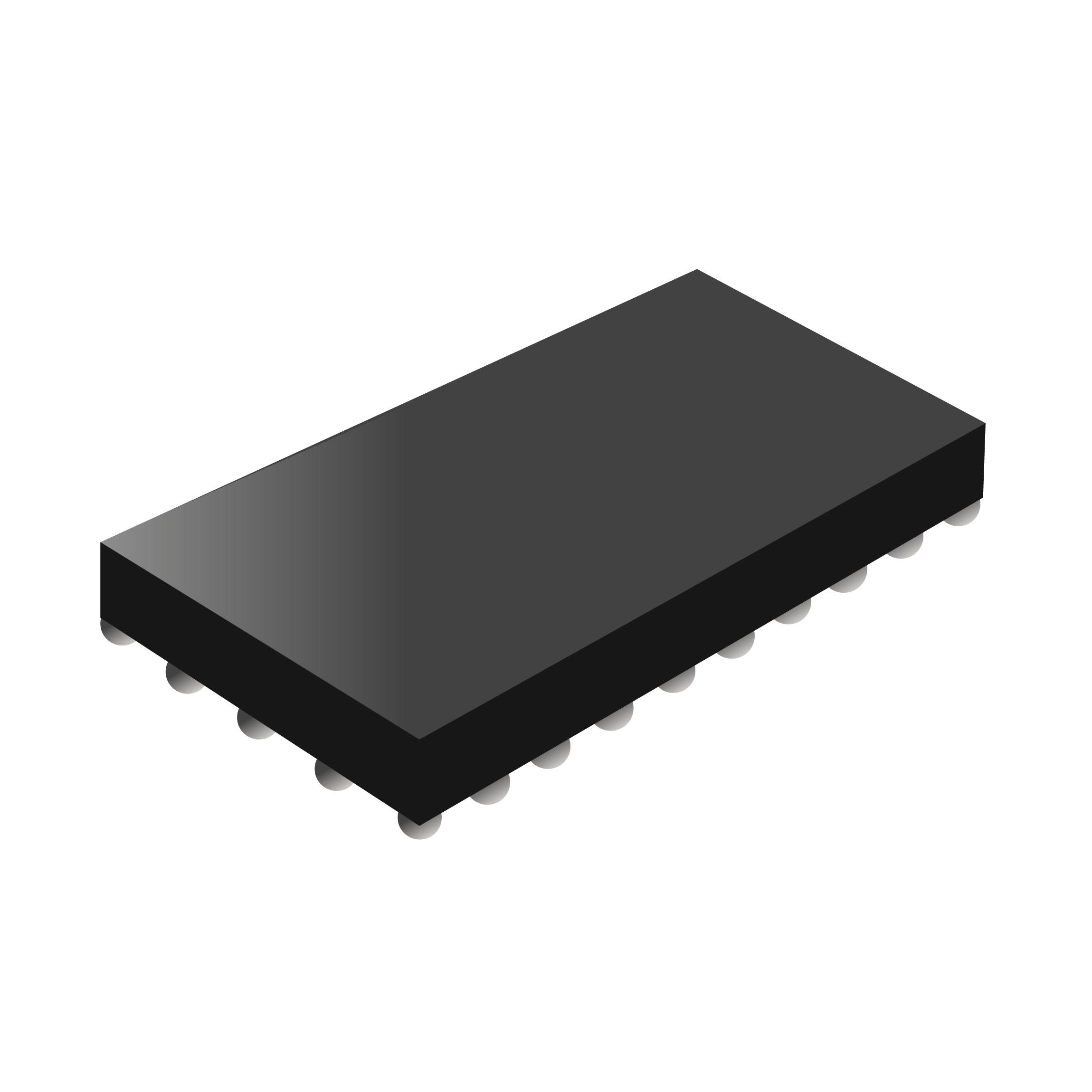

CHARGE PUMP CAPACITOR DIVIDER, 5.7 TO 15V IN, 4A OUT, WLCSP-21

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PE25203A-V

Active

Murata Power Solutions Inc.

CHARGE PUMP CAPACITOR DIVIDER, 5.7 TO 15V IN, 4A OUT, WLCSP-21

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PE25203A-V

Current - Output	4 A
Function	Ratiometric
Number of Outputs	1
Output Configuration	Positive
Output Type	1.81 mOhm
Synchronous Rectifier	False
Voltage - Input (Max) [Max]	15 V
Voltage - Input (Min) [Min]	5.7 V
Voltage - Output (Min/Fixed)	Vin/3, Vin/2

PE25203 Series

Part	Output Configuration	Voltage - Input (Max) [Max]	Function	Synchronous Rectifier	Current - Output	Number of Outputs	Voltage - Output (Min/Fixed)	Output Type	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. PE25203A-V	Positive	15 V	Ratiometric		4 A	1	Vin/2 Vin/3	1.81 mOhm	5.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.30
		10	$ 3.20
		25	$ 3.11
		50	$ 3.01
		100	$ 2.92
	Digi-Reel®	1	$ 3.30
		10	$ 3.20
		25	$ 3.11
		50	$ 3.01
		100	$ 2.92
	Tape & Reel (TR)	250	$ 2.92
Newark	Each (Supplied on Full Reel)	250	$ 4.34
		500	$ 4.03
		1000	$ 3.79

Description

General part information

PE25203 Series

PE25203A-V is a high-efficiency front-end DC-DC converter. It is an ultra-high efficiency charge pump that is configurable to divide down an input voltage by two or three and deliver up to 4A at up to 99% peak efficiency. It supports an input voltage range of 5.7V to 10V in divide-by-2 mode and 8.4V to 15V in divide-by-3 mode. It is used in applications such as two-cell and three-cell lithium platforms, ultrabook and notebook computers, full-size tablet computers, ultra-thin form factor designs, 12VIN point-of-load designs in networking and telecommunications.
