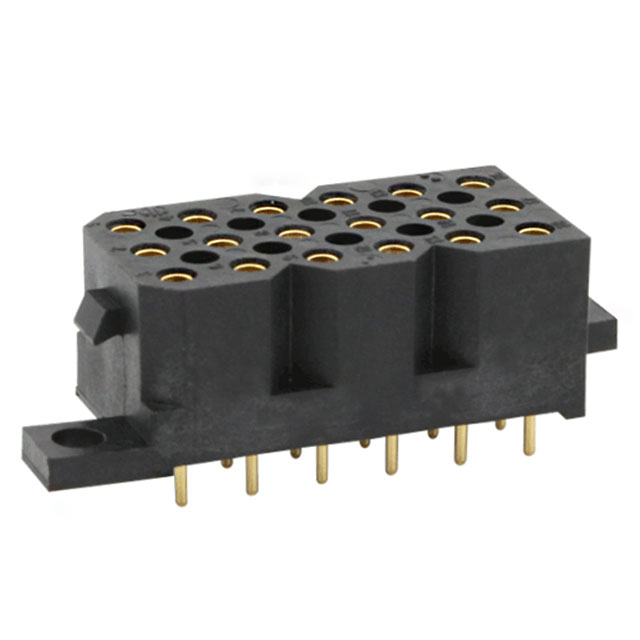

SMS18SE3K9

Active

Souriau-Sunbank by Eaton

CONN RCPT 18POS 0.2 GOLD PCB

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT 18POS 0.2 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS18SE3K9

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Style	Board to Board, Cable
Termination	Solder

Part	Material Flammability Rating	Contact Type	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Features	Insulation Color	Current Rating (Amps)	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Fastening Type	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Ingress Protection	Contact Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Shrouding	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating
Souriau-Sunbank by Eaton SMS18SE3K9	UL94 V-0	Female Socket	18	Solder	5.08 mm	0.2 in	Mounting Flange	Black	5 A	Circular	105 ░C	-55 °C	0.134 in	3.4 mm	Tin	Locking Ramp	Gold	Receptacle	All	5.08 mm	0.2 "	IP40	Copper Alloy	Board to Board Cable	16 Áin	0.41 Ám	Through Hole	6
Souriau-Sunbank by Eaton SMS18SE4K9	UL94 V-0	Male Pin	18	Solder	5.08 mm	0.2 in	Mounting Flange	Black	5 A	Circular	125 °C	-55 °C			Tin	Locking Ramp	Gold	Header	All	5.08 mm	0.2 "	IP40	Copper Alloy	Board to Cable/Wire	16 Áin	0.41 Ám	Through Hole	6	Unshrouded	Polyester Glass Filled	23.8 mm	0.937 in	3.5 mm	0.138 in	0.28 in	7.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.50

General part information

18 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold
