09305161540

Active

HARTING Technology Group

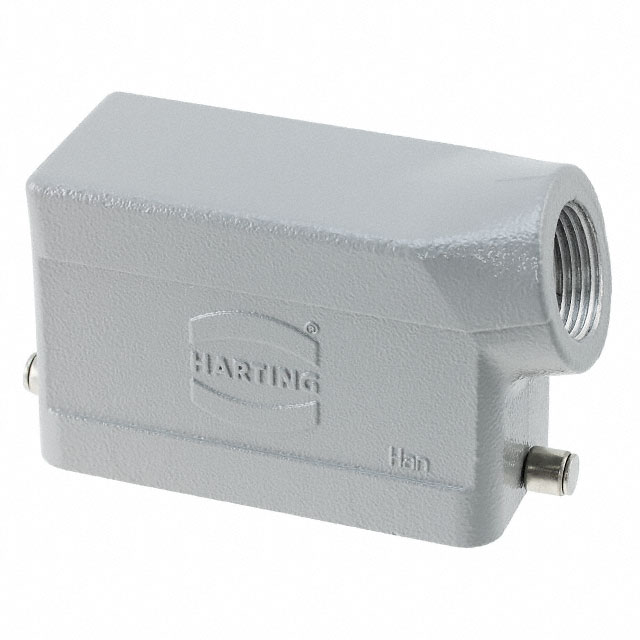

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, 16B, HARTING HAN SERIES HEAVY DUTY CONNECTOR, HAN SERIES

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, 16B, HARTING HAN SERIES HEAVY DUTY CONNECTOR, HAN SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	09305161540

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	62.5 mm
Size / Dimension [z]	2.461 in
Style	Side Entry
Thread Size	NPT-3/4

Part	Lock Location	Style	Thread Size	Housing Material	Ingress Protection	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Finish	Size
HARTING Technology Group 09305161540	Locking Clip (1) on Base Bottom	Side Entry	NPT-3/4	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	93.5 mm	3.681 "	62.5 mm	1.693 in	2.461 in	43 mm	125 °C	-40 °C	Gray	Powder Coated	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-3/4 16B IP65 - Dust Tight, Water Resistant
