19300242296

Active

HARTING Technology Group

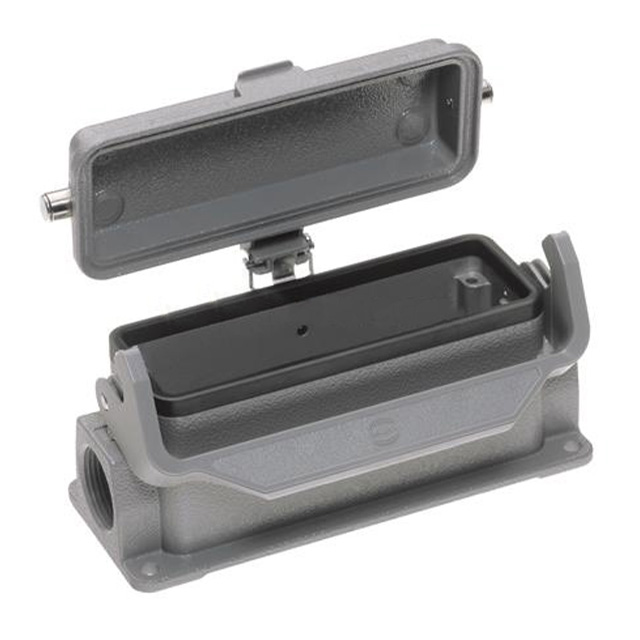

HEAVY DUTY HOUSING, 24B, 1 LEVER, ALUM

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY HOUSING, 24B, 1 LEVER, ALUM

Technical Specifications

Parameters and characteristics for this part

Specification	19300242296

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 in, 144 mm
Size / Dimension [y]	2.244 ", 57 mm
Size / Dimension [z]	55.8 mm, 2.197 in
Style	Side Entry
Thread Size	M25

Part	Thread Size	Size	Housing Finish	Ingress Protection	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Connector Type	Lock Location	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Style
HARTING Technology Group 19300242296	M25	24 B	Powder Coated	IP65 - Dust Tight Water Resistant	2.197 in 55.8 mm	2.244 " 57 mm	5.669 in 144 mm	Aluminum Die Cast	Base - Box Mount	Locking Clip (1) on Base Bottom	Gray	125 °C	-40 °C	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 24B IP65 - Dust Tight, Water Resistant
