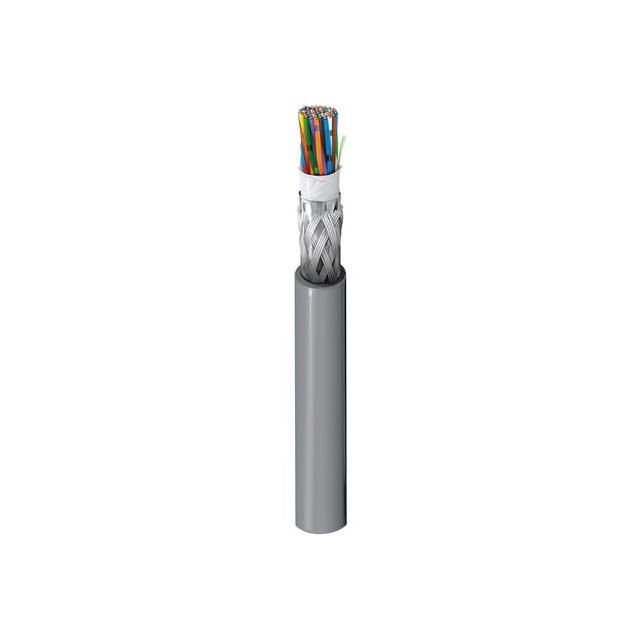

1403A F2V500

Active

Belden Inc.

MULTI-PAIR 68CON 28AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 68CON 28AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1403A F2V500

Cable Type	Multi-Pair
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.48 in
Jacket (Insulation) Diameter [diameter]	12.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	68
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	28 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length [x]	Length [x]	Shield Type	Cable Type	Conductor Material	Jacket Color	Conductor Insulation	Shield Coverage
Belden Inc. 1403A F2V500	0.038 in	0.965 mm	300 V	Poly-Vinyl Chloride (PVC)	68	36 AWG	7	Aluminum Copper Tinned	0.48 in	12.19 mm	28 AWG	500 '	152.4 m	Braid Foil	Multi-Pair	Copper Tinned	Gray	Polyolefin (PO)	85 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 18.42

General part information

68 (34 Pair Twisted) Conductor Multi-Pair Cable Gray 28 AWG Foil, Braid 500.0' (152.4m)
