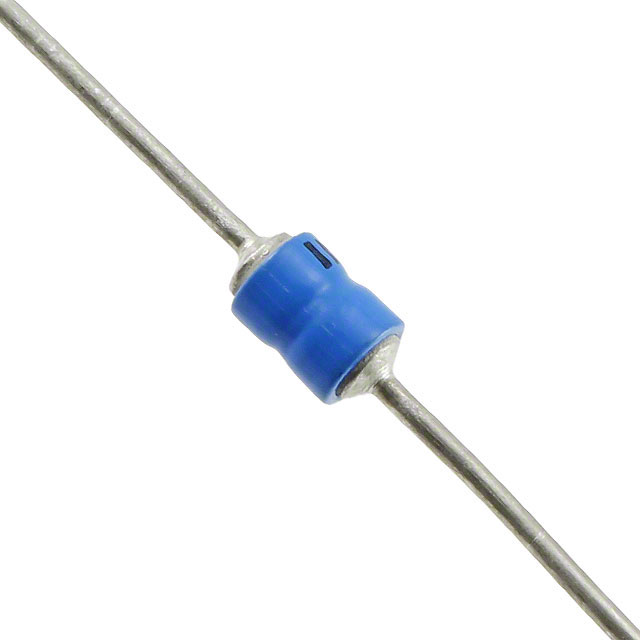

JANTX1N5553

Unknown

Semtech Corporation

DIODE GEN PURP 800V 5A AXIAL

Search across all available documentation for this part.

Unknown

Semtech Corporation

DIODE GEN PURP 800V 5A AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	JANTX1N5553

Capacitance @ Vr, F	92 pF
Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	1 µA
Grade	Military
Mounting Type	Through Hole
Package / Case	Axial
Qualification	MIL-PRF-19500/420
Reverse Recovery Time (trr)	2 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Axial
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Qualification	Grade	Speed	Speed	Package / Case	Reverse Recovery Time (trr)	Technology	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type
Semtech Corporation JANTX1N5553	1 V	Axial	1 µA	MIL-PRF-19500/420	Military	Standard Recovery >500ns	200 mA	Axial	2 µs	Standard	92 pF	800 V	5 A	Through Hole
Semtech Corporation 1N5553	1 V	Axial	1 µA			Standard Recovery >500ns	200 mA	Axial	2 µs	Standard	92 pF	800 V	5 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 800 V 5A Through Hole Axial
