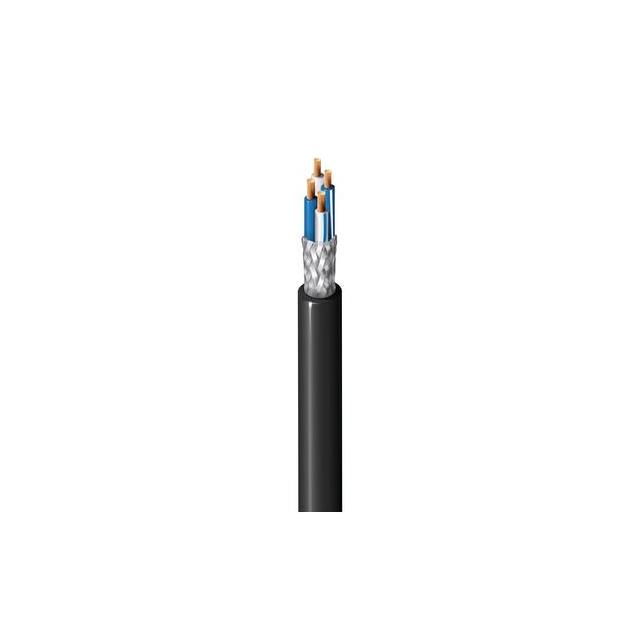

1192A B59500

Active

Belden Inc.

4 #24 PE SH PVC BLK MTT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBroadcast and Professional AV Solutions Datasheet

1192A B59500

Active

Belden Inc.

4 #24 PE SH PVC BLK MTT

Deep-Dive with AI

DocumentsBroadcast and Professional AV Solutions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1192A B59500

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	40 AWG, 42
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.118 mm
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	92 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio
Voltage	100 V
Wire Gauge	24 AWG

1192A Series

Part	Voltage	Wire Gauge	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Material	Cable Type	Shield Coverage	Usage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Type	Conductor Strand	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
Belden Inc. 1192A B59100	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C	30.5 m	100 ft	Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Black	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in
Belden Inc. 1192A G7W1000	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C			Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Green	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in	1000 ft	304.8 m
Belden Inc. 1192A B59500	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C	152.4 m	500 '	Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Black	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in
Belden Inc. 1192A G7WN1000	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C			Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Green	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in	1000 ft	304.8 m
Belden Inc. 1192A U901000	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C			Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Gray	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in	1000 ft	304.8 m
Belden Inc. 1192A G7V1000	100 V	24 AWG	Copper Tinned	-30 ░C	75 ░C			Copper Bare	Microphone	92 %	Audio	Polyethylene (PE)	6.22 mm	0.245 in	4	Braid	40 AWG 42	Red	Poly-Vinyl Chloride (PVC)	1.118 mm	0.044 in	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.33

Description

General part information

1192A Series

4 Conductor Microphone Cable Black 24 AWG Braid 500.0' (152.4m)

Documents

Technical documentation and resources

Broadcast and Professional AV Solutions

Datasheet
