0150210624

Active

Molex

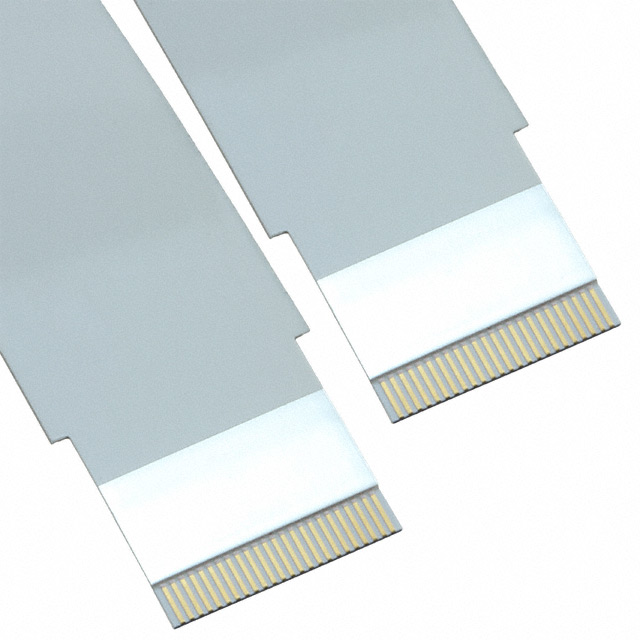

CABLE FFC/FPC 24POS 0.5MM 6"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 24POS 0.5MM 6"

Technical Specifications

Parameters and characteristics for this part

Specification	0150210624

Cable Type	FPC, FFC
Length	152.4 mm
Length	6 in
Length - Exposed Ends [x]	2.2 mm
Length - Exposed Ends [x]	0.087 in
Number of Conductors	24
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length	Length [x]	Termination Style	Number of Conductors	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length [x]
Molex 0150211224	304.8 mm	12 in	Backers on Both Sides Top on Both Sides	24	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in
Molex 0150210224	50.8 mm		Backers on Both Sides Top on Both Sides	24	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in	2 in
Molex 0150210624	152.4 mm		Backers on Both Sides Top on Both Sides	24	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in	6 in
Molex 0150210615	152.4 mm		Backers on Both Sides Top on Both Sides	15	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in	6 in
Molex 0150211233	304.8 mm	12 in	Backers on Both Sides Top on Both Sides	33	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in
Molex 0150211033	254 mm	10 in	Backers on Both Sides Top on Both Sides	33	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in
Molex 0150212433		24 in	Backers on Both Sides Top on Both Sides	33	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in		609.6 mm
Molex 0150210633	152.4 mm		Backers on Both Sides Top on Both Sides	33	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in	6 in
Molex 0150210833	203.2 mm		Backers on Both Sides Top on Both Sides	33	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in	8 in
Molex 0150211215	304.8 mm	12 in	Backers on Both Sides Top on Both Sides	15	FFC FPC	2.2 mm	0.087 in	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position FFC, FPC Cable 0.020" (0.50mm) 6.000" (152.40mm)
